CLM-112-02-L-D

SAMTEC  CLM-112-02-L-D  板至板连接器, 母, 24路, 2排

CLM 系列坚固微型插座

这些 板对板 CLM 系列，SMT，节距为 1.0 mm 的坚固微型插座，虎爪触点上有 0.25 μm 镀金，PCB 尾线上镀锡。 该板对板系列 CLM 系列，SMT，节距为 1.0 mm 的坚固微型插座，为薄型，高度仅 2.26 mm。

绝缘体材料：黑色 LCP

工作温度：-55°C → 125°C

### 注

与 FTMH 系列管座配用，请参见库存号 766-8975（典型）。

### 1.0mm Board to Board - Samtec

得捷:
CONN RCPT 24POS 0.039 GOLD SMD

欧时:
CLM 系列坚固微型插座这些 Samtec 板对板 CLM 系列，SMT，节距为 1.0 mm 的坚固微型插座，虎爪触点上有 0.25 μm 镀金，PCB 尾线上镀锡。 该板对板系列 CLM 系列，SMT，节距为 1.0 mm 的坚固微型插座，为薄型，高度仅 2.26 mm。 绝缘体材料：黑色 LCP 工作温度：-55°C → 125°C### 注与 FTMH 系列管座配用，请参见库存号 766-8975（典型）。### 1.0mm Board to Board - Samtec

艾睿:

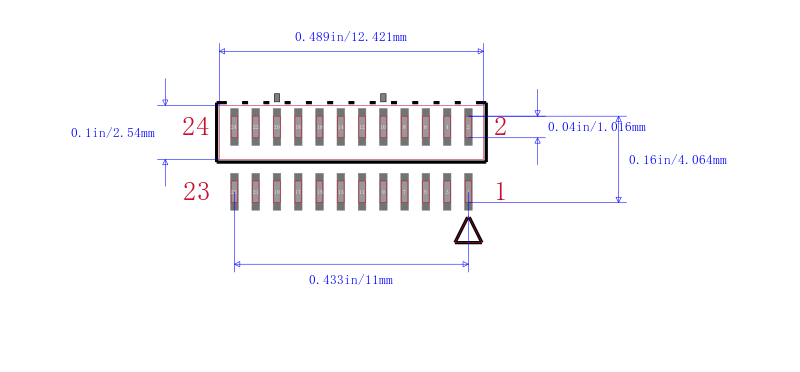

Mounting this socket strip CLM-112-02-L-D header connector from Samtec to your printed circuit board can help you support multiple physical configuration options. This SKT connector&s;s 24 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a socket type gender. It has a straight body orientation. This is a 2-row connector. Its pitch is 1 mm. This device has a maximum current rating of 2.8 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. CLM-112-02-L-D is housed in black liquid crystal polymer. It uses the solder termination method. This product is 12.31 mm long, 2.26 mm tall and 3.81 mm deep.

安富利:
Conn Socket Strip SKT 24 POS 1mm Solder ST SMD Tube

Chip1Stop:
Conn Socket Strip SKT 24 POS 1mm Solder ST SMD Tube

Newark:
Board-To-Board Connector, CLM Series, Solder, Receptacle, 24, 1 mm, Gold Plated Contacts
