LDO Regulator Pos 1.25V to 13V 3A 3Pin3+Tab TO-220 Rail
The CS5203A series of linear regulators provides 3.0 A at adjustable and fixed voltages with an accuracy of ±1.0% and ±2.0% respectively. The adjustable version uses two external resistors to set the output voltage within a 1.25 V to 13 V range.
The regulators are intended for use as post regulators and microprocessor supplies. The fast loop response and low dropout voltage make these regulators ideal for applications where low voltage operation and good transient response are important.
The circuit is designed to operate with dropout voltages as low as 1.0 V depending on the output current level. The maximum quiescent current is only 10 mA at full load.
The regulators are fully protected against overload conditions with protection circuitry for Safe Operating Area SOA, overcurrent and thermal shutdown.
The CS5203A is pin compatible with the LT1085 family of linear regulators but has lower dropout voltage.

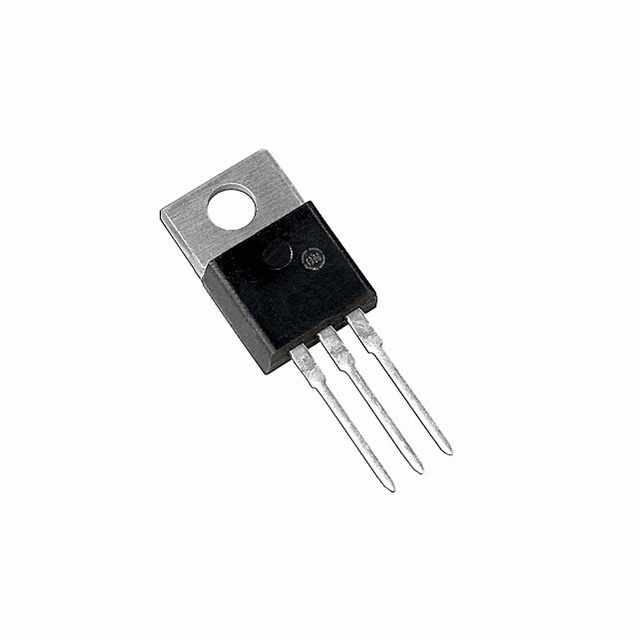

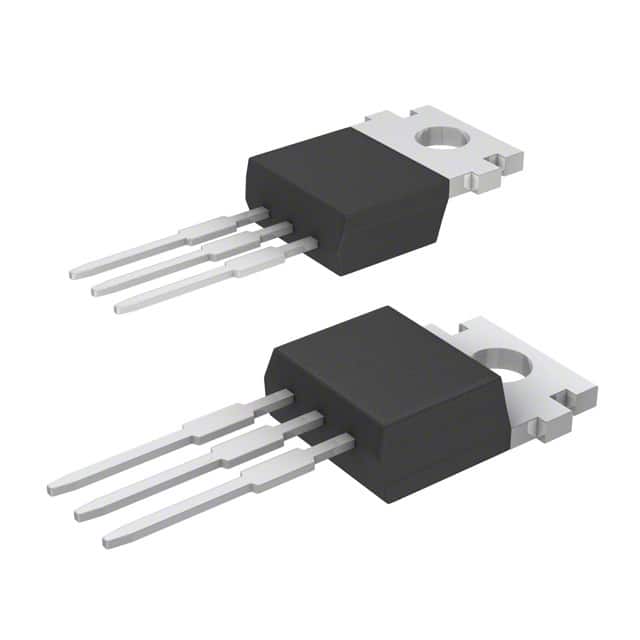

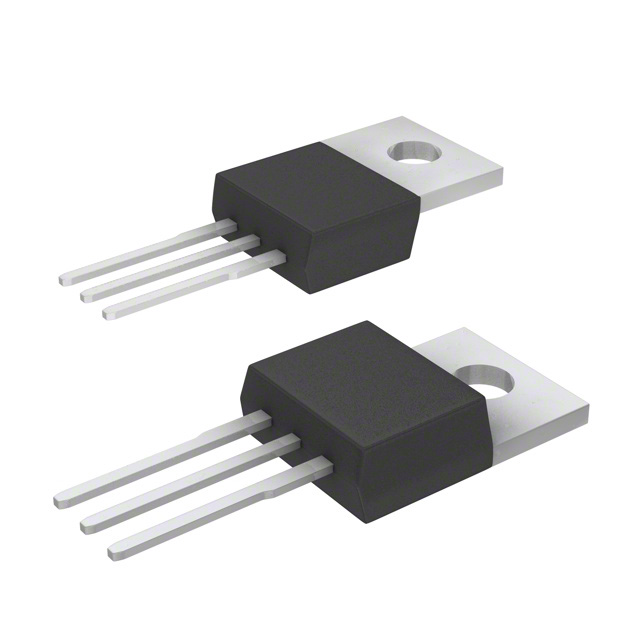

The regulators are available in TO−220−3 and surface mount D2PAK−3 packages.
Features
• Pb−Free Package is Available
• Output Current to 3.0 A
• Output Trimmed to ±1.0%
• Dropout Voltage 1.05 V @ 3.0 A
• Fast Transient Response
• Fault Protection Circuitry
♦ Thermal Shutdown
♦ Overcurrent Protection
♦ Safe Area Protection
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CS5203A-1GT3 ON Semiconductor 安森美 | 当前型号 | 当前型号 |
NCP1117STAT3G 安森美 | 功能相似 | CS5203A-1GT3和NCP1117STAT3G的区别 |
NCV1117STAT3G 安森美 | 功能相似 | CS5203A-1GT3和NCV1117STAT3G的区别 |
LM1084IT-ADJ/NOPB 德州仪器 | 功能相似 | CS5203A-1GT3和LM1084IT-ADJ/NOPB的区别 |
