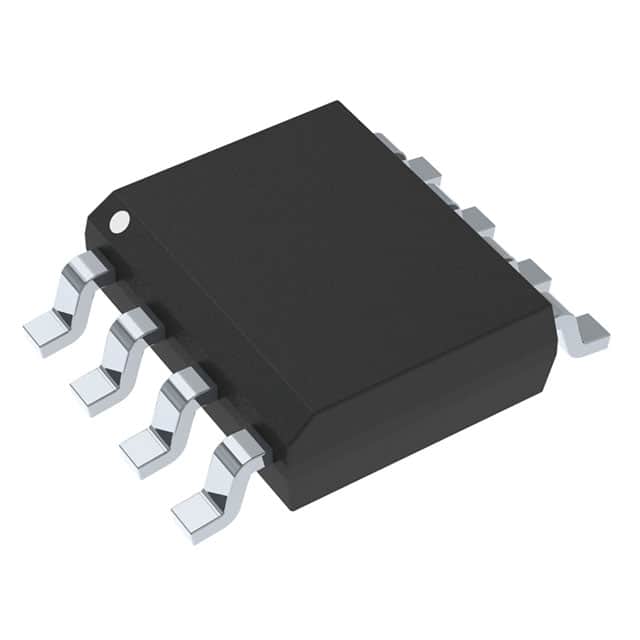

CS51031YDR8图片1
CS51031YDR8图片2
CS51031YDR8图片3
CS51031YDR8图片4
CS51031YDR8图片5
CS51031YDR8概述

快速P沟道FET降压控制器 Fast P−Ch FET Buck Controller

The Hysteretic PFET Buck Controller is a switching controller for use in dc-dc converters. It can be used in the buck topology with a minimum number of external components. This Hysteretic PFET Buck Controller consists of a VCC monitor for control-ling the state of the device, 1.0 A power driver for controlling the gate of a discrete P-channel transistor, fixed frequency oscillator, short circuit protection timer, programmable soft start, precision reference, fast output voltage monitoring comparator and output stage driver logic with latch.The high frequency oscillator allows the use of small inductors and output capacitors, minimizing PC board area and systems cost. The programmable soft start reduces current surges at start up. The short circuit protection timer significantly reduces the duty cycle to approximately 1/30 of its cycle during short circuit conditions.The CS51031 is available in 8 Lead SO plastic packages.

Features

---

 |

.
1A Totem Pole Output Driver
.
High Speed Oscillator 700 Hz max
.
No Stability Compensation Required
.
Lossless Short Circuit Protection
.
VCC Monitor
.
2% Precision Reference
.
Programmable Soft Start
.
Wide Ambient Temperature Range:

Industrial Grade: -40°C to 85°C

Commercial Grade: 0°C to 70°C

.
Pb-Free Packages are Available
CS51031YDR8中文资料参数规格
技术参数

输出接口数 1

开关频率 200 kHz

最大占空比 0.833

封装参数

安装方式 Surface Mount

封装 SOIC-8

外形尺寸

封装 SOIC-8

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Obsolete

包装方式 Tape & Reel TR

制造应用 FPGA, DSP, I/O and Core

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

CS51031YDR8引脚图与封装图

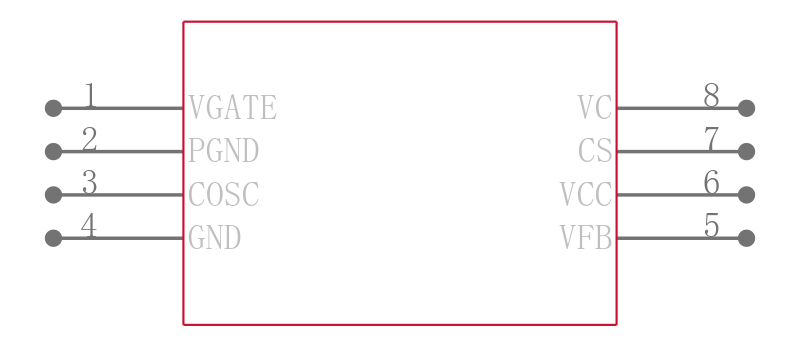

CS51031YDR8引脚图

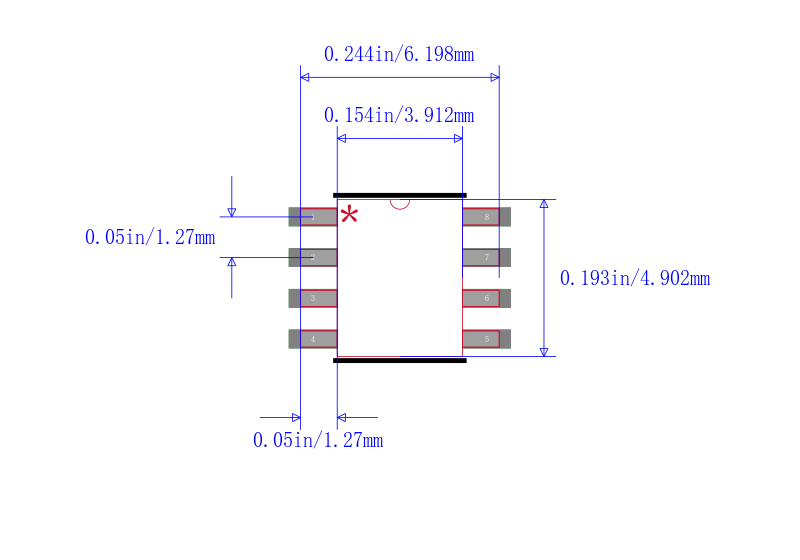

CS51031YDR8封装图
CS51031YDR8封装焊盘图
