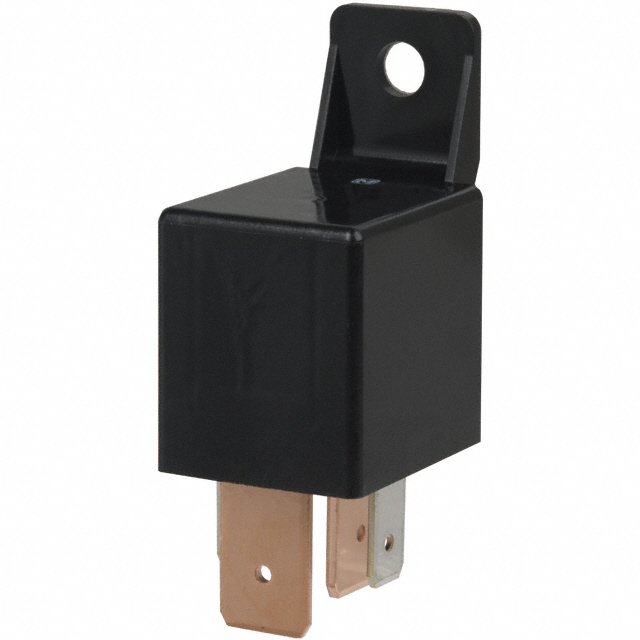

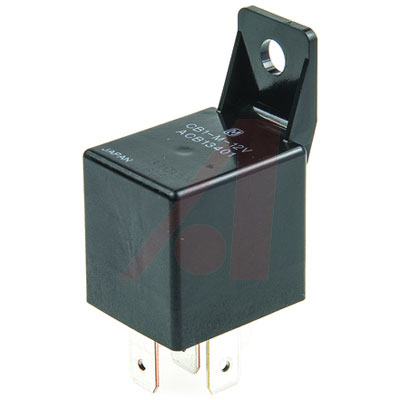

CB1AH-R-M-12V

CB1AH-R-M-12V图片1
CB1AH-R-M-12V图片2
CB1AH-R-M-12V图片3
CB1AH-R-M-12V图片4
CB1AH-R-M-12V图片5
CB1AH-R-M-12V图片6
CB1AH-R-M-12V图片7
CB1AH-R-M-12V概述

Electromechanical Relay 12VDC 89.5Ω 40A SPST-NO 30mm 22mm 52mm Bracket Automotive Relay Automotive

**CB Series**

These high power automotive relays feature a high switching capacity and have an ISO terminal arrangement in a compact 22x26mm space saving housing. Typical applications include automobiles, construction equipment and agricultural equipment.


得捷:
RELAY AUTOMOTIVE SPST 70A 12V


贸泽:
Automotive Relays 1 Form A 12V with resistor inside


艾睿:
Electromechanical Relay 12VDC 89.5Ohm 40A SPST-NO 30mm 22mm 52mm Bracket Automotive Relay Automotive


Allied Electronics:
SPST Through Hole Non-Latching Relay Tab, 70 A, 12V dc


安富利:
Electromechanical Relay SPST-NO 40A 12VDC 89.5Ohm Bracket Mount


Chip1Stop:
Electromechanical Relay SPST-NO 40A 12VDC 89.5Ohm Bracket Mount


Electro Sonic:
Relays 12VDC 89.5Ohm 40A SPST-NO30mm 22mm 52mm Bracket Automotive Relay Automotive


CB1AH-R-M-12V中文资料参数规格
技术参数

触点类型 SPST-NO

功耗 1.8 W

触点额定电流 40 A

线圈电压 12 VDC

线圈电流 134 mA

线圈电阻 89.5 Ω

额定电流Max 40 A

线圈电压DC 12 V

线圈功率 1.6 W

工作温度Max 85 ℃

工作温度Min -40 ℃

封装参数

安装方式 Quick Connect

外形尺寸

长度 30 mm

宽度 22 mm

高度 52 mm

物理参数

触点材质 Silver

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买CB1AH-R-M-12V
型号: CB1AH-R-M-12V
制造商: Panasonic 松下
描述:Electromechanical Relay 12VDC 89.5Ω 40A SPST-NO 30mm 22mm 52mm Bracket Automotive Relay Automotive
