CPC1035N

CPC1035N 系列 单刀单掷 100 mA 350 V 单通道 固态继电器 表面贴装 - SOIC-4

Description

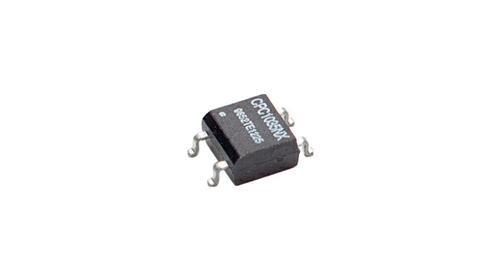

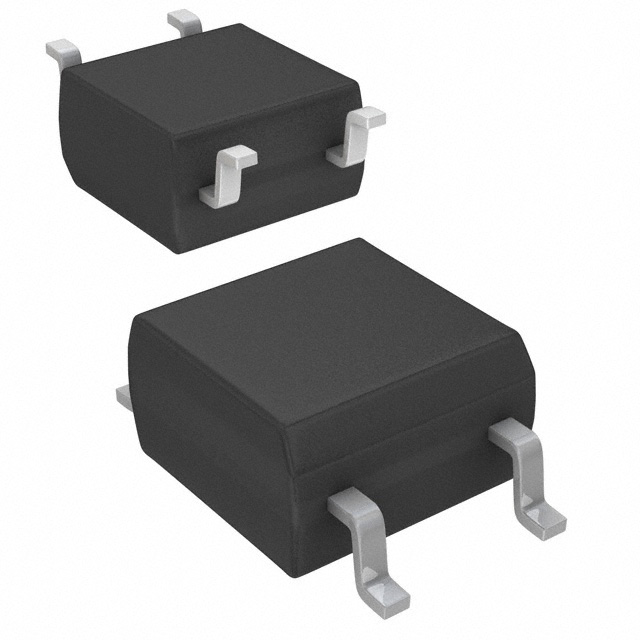

The is a miniature 1-Form-A solid state relay in a 4 pin SOP package that employs optically coupled MOSFET technology to provide 1500V of input to output isolation. The efficient MOSFET switches and photovoltaic die use Clare’s patented OptoMOS® architecture. The optically coupled input is controlled by a highly efficient GaAlAs infrared LED. The CPC1035N uses Clare’s state of the art double molded vertical construction packaging to produce the world’s smallest relay. The CPC1035N offers board space savings of at least 20% over the competitor’s larger 4 pin SOP relay.

Features

• Small 4 Pin SOP Package

• Low Drive Power Requirements TTL/CMOS Compatible

• No Moving Parts

• High Reliability

• Arc-Free With No Snubbing Circuits

• 1500VRMS Input/Output Isolation

• FCC Compatible

• No EMI/RFI Generation

• Machine Insertable, Wave Solderable

• Tape & Reel Version Available

Applications

• Telecommunications

   • Telecom Switching

   • Tip/Ring Circuits

   • Modem Switching Laptop, Notebook, Pocket Size

   • Hookswitch

   • Dial Pulsing

   • Ground Start

   • Ringer Injection

• Instrumentation

   • Multiplexers

   • Data Acquisition

   • Electronic Switching

   • I/O Subsystems

   • Meters Watt-Hour, Water, Gas

• Medical Equipment—Patient/Equipment Isolation

• Security

• Aerospace

• Industrial Controls
