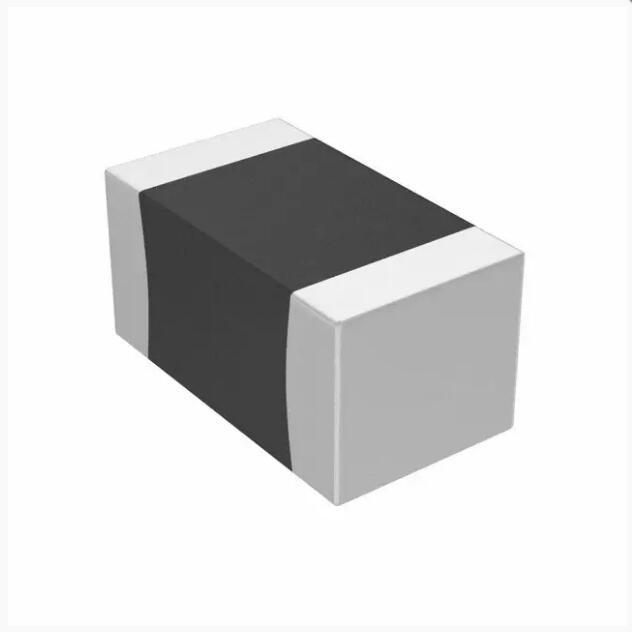

0603 16 V 680 nF X7R ±10% 容差 多层陶瓷电容
MLCC-多层陶瓷器
得捷:
CAP CER 0.68UF 16V X7R 0603
立创商城:
680nF ±10% 16V
艾睿:
With alternating layers of ceramic acting as the dielectric and electrodes, this CC0603KRX7R7BB684 multilayer ceramic capacitor from Yageo achieves a large capacitance in a small package. It can withstand a voltage of 16 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its capacitance value is 0.68uF. It has a tolerance of 10%. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep.
安富利:
Cap Ceramic 0.68uF 16V X7R 10% SMD 0603 125°C Paper T/R
Chip1Stop:
Cap Ceramic 0.68uF 16V X7R 10% SMD 0603 125℃ T/R
Verical:
Cap Ceramic 0.68uF 16V X7R 10% Pad SMD 0603 125C T/R
额定电压DC 16.0 V
绝缘电阻 10 GΩ
电容 680 nF
容差 ±10 %
无卤素状态 Halogen Free
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±10 %
额定电压 16 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
厚度 0.8 mm
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CC0603KRX7R7BB684 Yageo 国巨 | 当前型号 | 当前型号 |
C1608X7R1C684K080AC 东电化 | 功能相似 | CC0603KRX7R7BB684和C1608X7R1C684K080AC的区别 |
CGJ3E3X7R1C684K080AB 东电化 | 功能相似 | CC0603KRX7R7BB684和CGJ3E3X7R1C684K080AB的区别 |
0603B684K160CT 台湾华科 | 功能相似 | CC0603KRX7R7BB684和0603B684K160CT的区别 |
