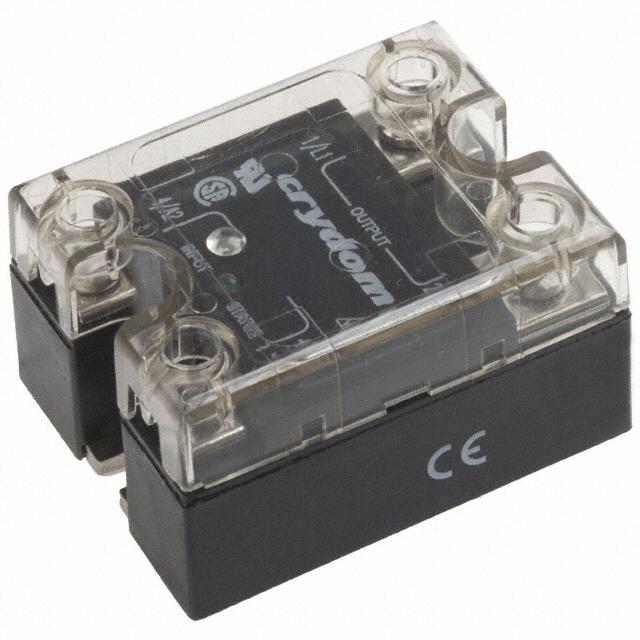

固态继电器-工业安装 0.15-10A 90-280VAC
24 to 280 V RMS Operating Voltage, Panel Mount, SCR AC Output Solid-State Relays
* 600 V blocking
* Low leakage
* SCR output
* Zero and random voltage switching
* LED status indicator
* Intergrated removable fingerproof cover
* User friendly, universal connectors
* EMC Compliant design
* 600 V Blocking
* Low Leakage
* SCR Output
* Zero and Random Voltage Switching
* LED Status Indicator
* Panel Mount
* Integrated Removable Fingerproof Cover
* User Friendly, Universal Connectors
* EMC Compliant Design
* Single Pole
* Normally Open Output
额定电流 10 A
输出电流 ≤10.0 A
触点类型 SPST-NO
负载电流 10.0 A
输入电流 6mA ~ 10mA
耗散功率 0.5 W
输入电流Min 10 mA
工作温度Max 80 ℃
工作温度Min -40 ℃
额定电压 280 VAC
输入电压 90VAC ~ 280VAC
安装方式 Panel, Screw
引脚数 4
封装 Hockey Puck
长度 58.4 mm
宽度 45.7 mm
高度 33.0 mm
封装 Hockey Puck
触点材质 Silver Alloy
工作温度 -40℃ ~ 80℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490080
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CWA2410-10 Crydom 快达 | 当前型号 | 当前型号 |
CWA2410 快达 | 类似代替 | CWA2410-10和CWA2410的区别 |
CWA2410E 快达 | 类似代替 | CWA2410-10和CWA2410E的区别 |
CWA2410P 快达 | 类似代替 | CWA2410-10和CWA2410P的区别 |
