Relay; E-Mech; Timing; Multi-Function; SPST-NO; Cur-Rtg 5A; Ctrl-V 85-250AC; SMT Mnt

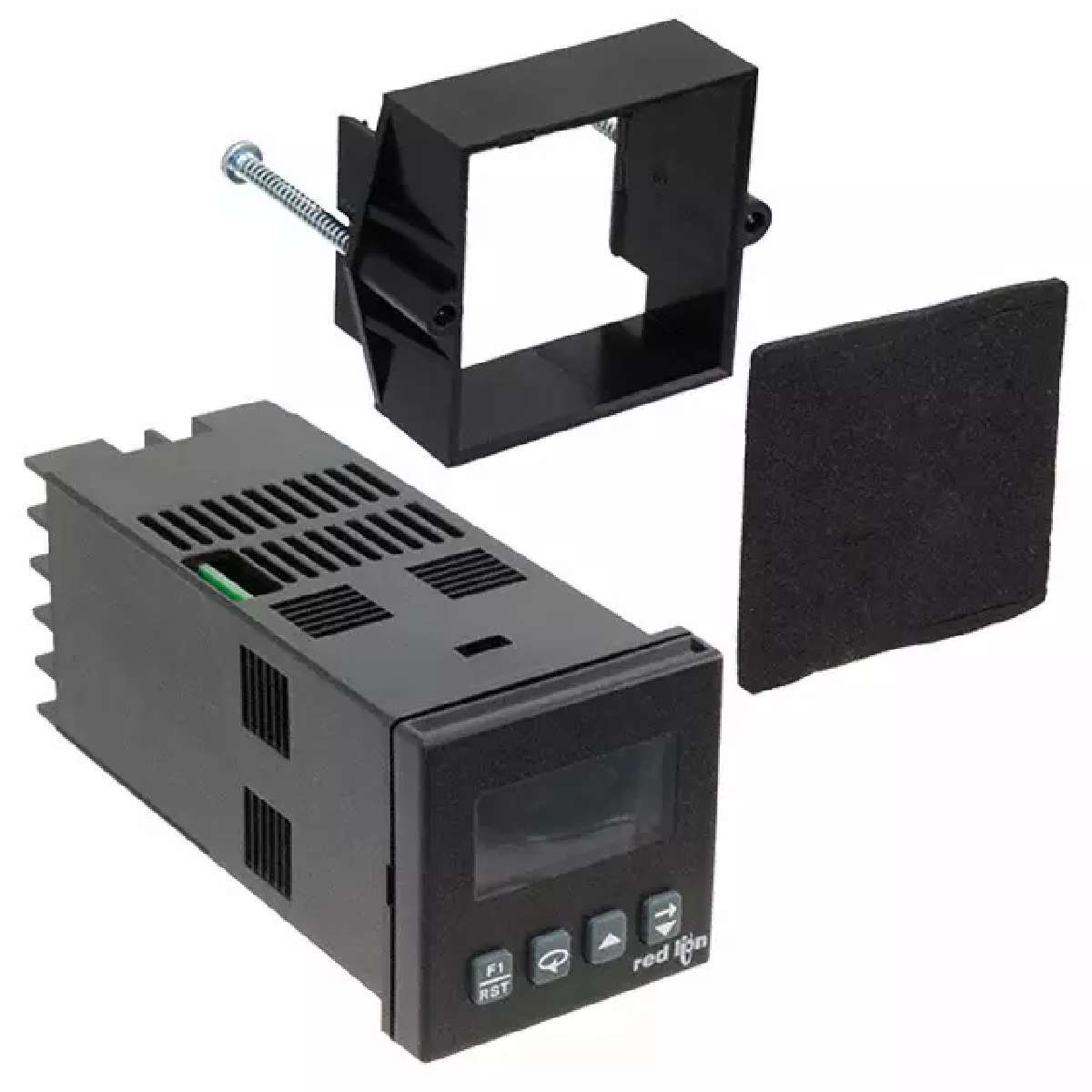

C48T Series 1/16 DIN Timers, 2 Line by 6 Digit LCD Display Type

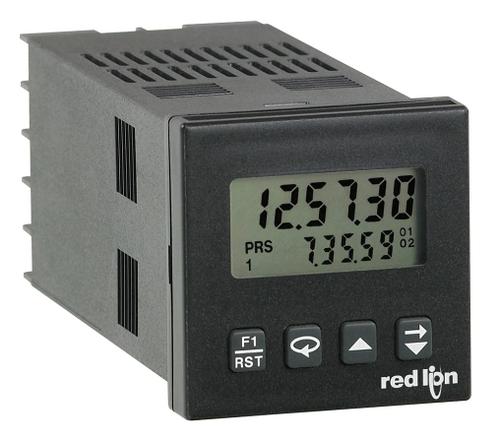

The C48T Series is a digital single or dual preset timer. The single preset model offers a choice of 12 timing ranges with 18 different operating modes. The dual preset model C48TD offers a choice 12 timing ranges with 42 operating modes. The C48T series feature a 7 segment, 2 line by 6-digit reflective or backlit LCD display. For the backlit version, the main display line is red and shows the timer value. The smaller secondary display line is green and can be used to view the preset values or output time values. Four front panel push buttons are used for programming the operating modes and data values, changing the viewed display and performing user programmable functions.
* 2 × 6 LCD, Pos. Reflective or Neg. Transmissive with Red and Green LED Backlighting
* Output Status Indicators
* Dual Line Display
* Panel Cutout: 1.77" × 1.77" 1/16 DIN
* Front Panel Programmable
* Operating Temperature: 0°C to 50°C
* Sealing: NEMA 4X/IP65
* UL Recognized
* 12 Timing Ranges from Thousands of Seconds to Hours and Minutes
* Other Output Combinations Available
* Horizontal or Vertical Stacking of Multiple Units
* Various Security Levels for Protection Against Unauthorized Programming Changes
