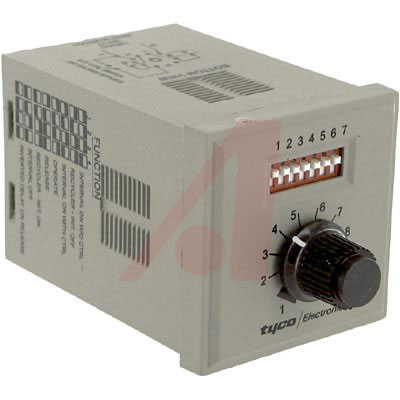

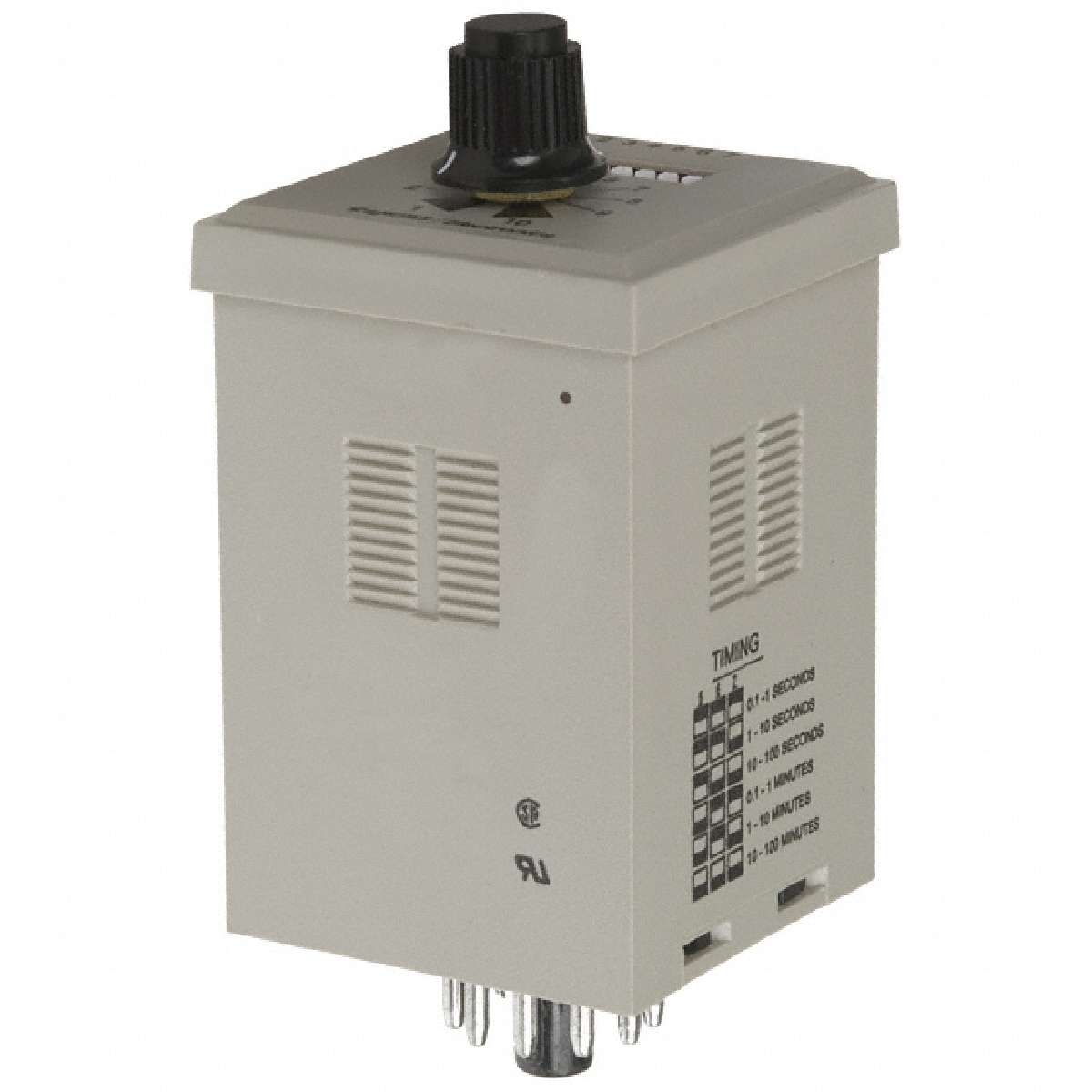

INTERVAL-DELAY RELAY, DPDT, MOMENTARY, 3000mW COIL, 10A CONTACT, 30VDC CONTACT, 0.1-6000s, SOCKET MOUNT
CNS Series are economical, multi-functional, programmable, time delay relays housed in 1⁄16 DIN style enclosures. Available programmable functions in units with 8-pin octal-style bases are delay on operate, interval on, recycler — initially on and recycler — initially off. Units with 11-pin octal-style bases provide those timing functions plus delay on release, interval off, inverted delay on release and an additional interval on function. Timing function and range is selected by a DIP switch, and actual delay time is set with an adjustment knob and calibrated dial. Delay is selectable on all units from 0.1 Sec to 100 min. All models have DPDT output contacts rated 10 amps @ 240 VAC/30 VDC. Operating temperature range is –10°C to +55°C.
