CTB3051/2BK

CAMDENBOSS  CTB3051/2BK  线至板接线端子, 2 路, 300 V, 6 A, 1 mm²

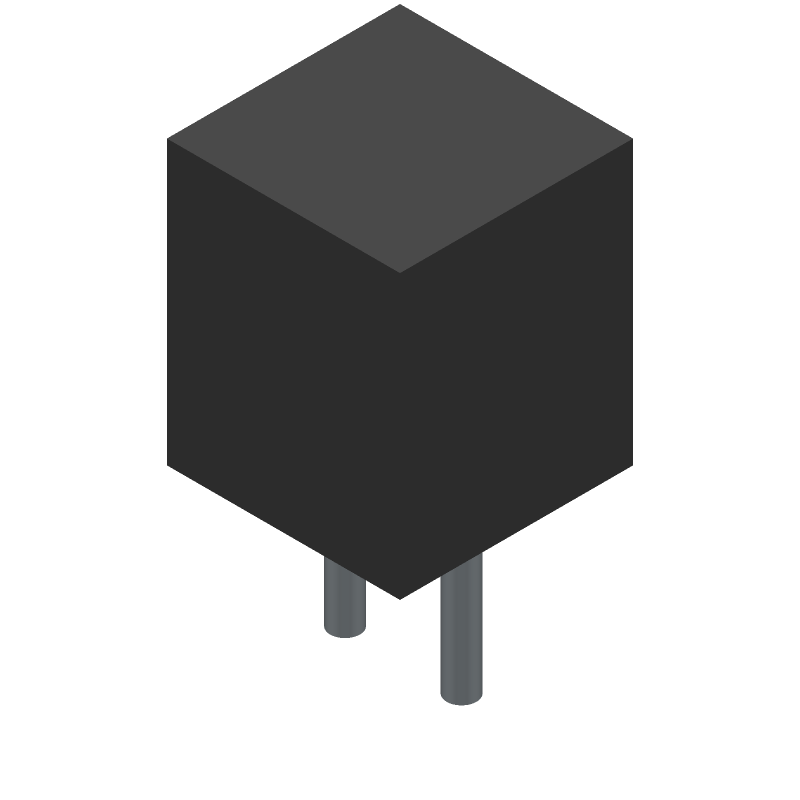

The from Camdenboss is a vertical through hole, 2 pole PCB terminal block with interlocking. This is a 3.5mm pitch ultra low profile commercial screw terminal.

.

Moulded in black

.

Dimension of terminal block is 7mm x 7mm x 8.5mm L x W x H

.

Tinned, nickel plated copper flash

.

Captive screws, right angle wire orientation

.

Recommended PCB hole size of 1.2mm

.

Guided pin alignment

.

Double interlock mechanism for increased strength

.

Working temperature of 105°C

.

UL94 V-0 flame retardant PA

.

Approved by cULus standard
