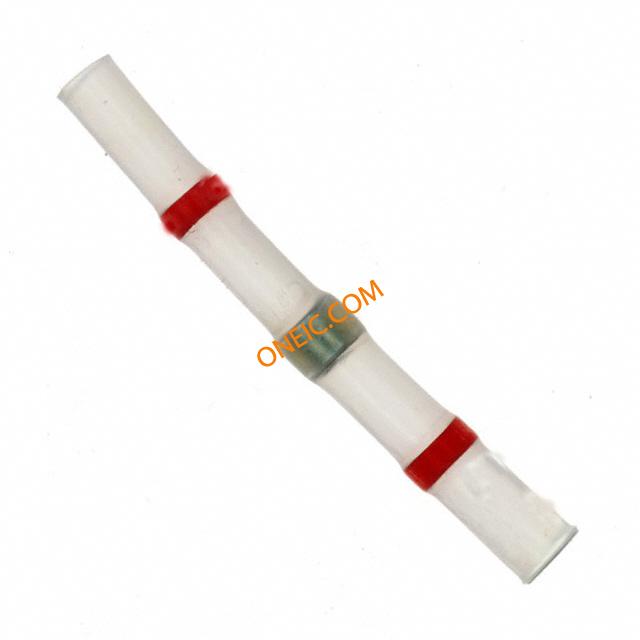

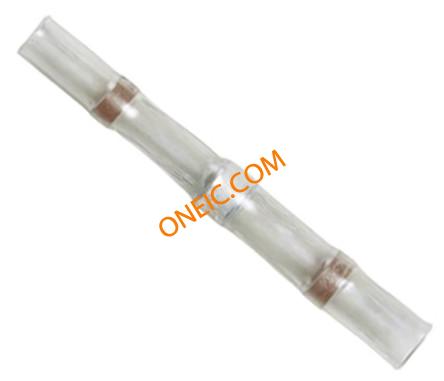

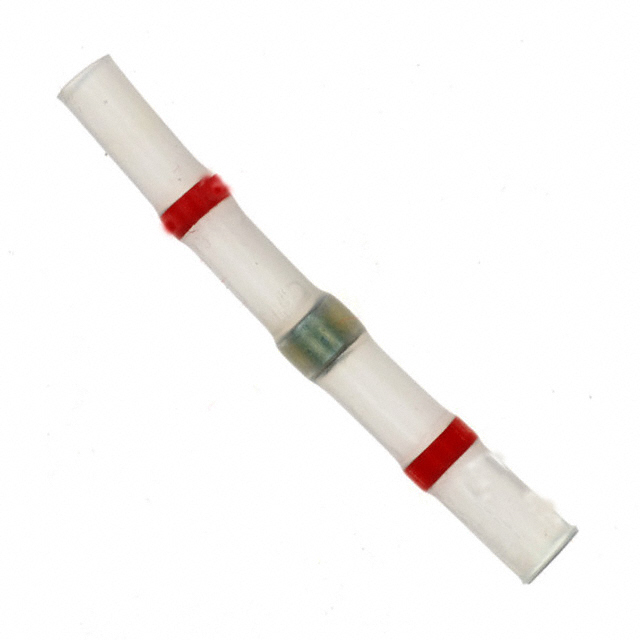

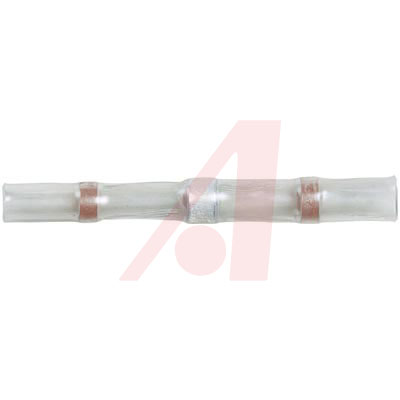

TE CONNECTIVITY / RAYCHEM CWT-9002 接线端子, 焊接套管, 2.7MM
SolderSleeve one-step terminators provide electrical termination in a wide variety of interconnect applications. One-step terminator capabilities include terminating wires to
component terminals, ground wires to cable shields, terminating coaxial cable, and wire-to-wire splicing.
e络盟:
焊接套管, 可热缩, 端子, 2.7 mm, 红色, 聚烯烃, 42 mm
艾睿:
Connector Terminals Solder Sleeve Wire Splice Cross-Linked Polyolefin Transparent Clear Tin Package
Allied Electronics:
SolderSleeve; ShieldTerminator; Red; Polyolefin; 42.0mmL; CWT Series
Chip1Stop:
Cable Accessories Solder Sleeve Wire Splice Cross-Linked Polyolefin Transparent Clear Tin
Verical:
Splice Terminal 14-18AWG Copper Red 42mm Tin Package
MASTER:
Connector Terminals Solder Sleeve Wire Splice Cross-Linked Polyolefin Transparent Clear Tin Package
Electro Sonic:
Connector Terminals Solder Sleeve Wire Splice Cross-Linked Polyolefin Transparent Clear Tin Package
触点电镀 Tin
绝缘电阻 1000 MΩ
方向 Straight
跌落电压 2 mV
工作温度Max 125 ℃
工作温度Min -55 ℃

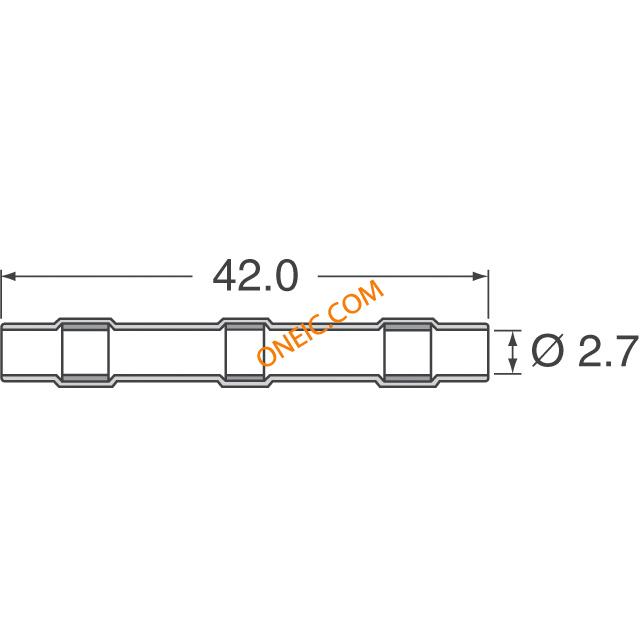

长度 42.04 mm
内径尺寸 2.7 mm
颜色 Red
触点材质 Copper
材质 Polyolefin PO
绝缘材质 Polyolefin
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Commercial, 车用, 国防, Maintenance & Repair, 军用与航空, 商业, Aerospace, Defence, Military, 国防, 军用与航空, Automotive, 维护与修理
RoHS标准 Non-Compliant
含铅标准 Not Applicable
ELV标准 Non-Compliant
REACH SVHC标准 Contains SVHC
军工级 Yes
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CWT-9002 TE Connectivity 泰科 | 当前型号 | 当前型号 |
B-155-9002 泰科 | 功能相似 | CWT-9002和B-155-9002的区别 |
