CINT3110 系列 110 W 三输出 5 V/15 V/-15 V 开放式 AC-DC 电源

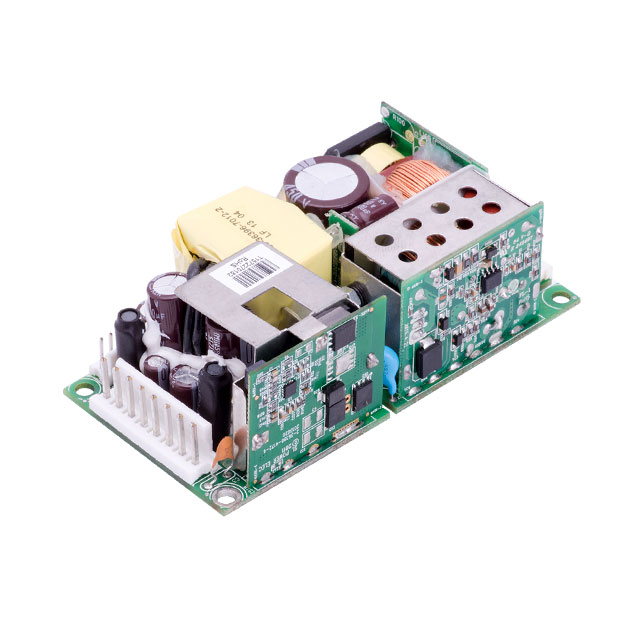

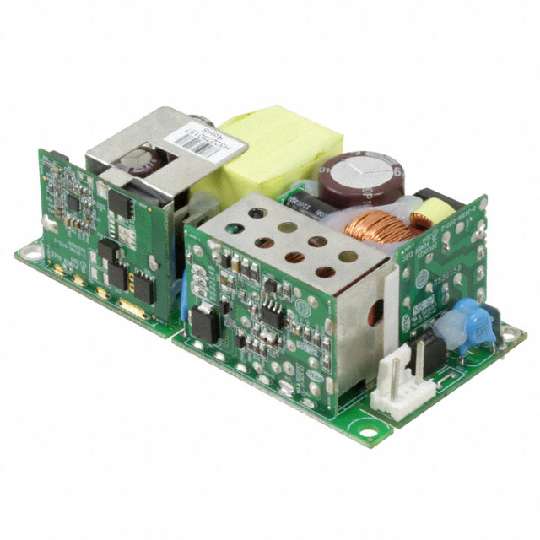

**Switch Mode, Triple Output, Industrial Power Supply, CINT3110 Series**
The Electronics CINT3110 family is a series of high density, triple output, open-frame AC/DC power supplies. These switch mode power supplies measure only 2 X 4 inches and less than 1U high, the CINT3110 provides 110W with 90% efficiency at 240Vac and 80W under convection. The CINT3110 power supplies operate at universal input range of 90 to 264Vac and wide temperature range -10°C to +70°C, delivering full rated output power up to +50°C. The CINT3110 models provide three outputs, featuring a 5V main output and various combinations of auxiliary outputs +/-12V, +/-15V, +/-24V. The power supplies also feature Power Fail and DC OK signals. Approved to CSA/EN/IEC/UL60950-1, 2nd edition, the CINT3110 power supplies are ideal for test & measurement, diagnostic, process control and other Industrial applications, the CINT3110 series triple output power supplies provide a highly reliable and energy efficient power solution in a small form factor at an affordable cost.
