静态随机存取存储器 36MB 静态随机存取存储器 with ECC

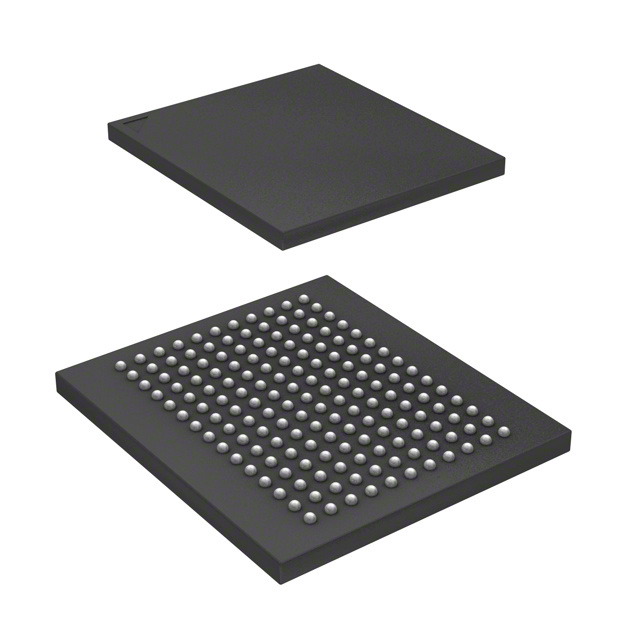

* Pin-compatible and functionally equivalent to ZBT™ * Supports 250-MHz bus operations with zero wait states * Available speed grades are 250 MHz, 200 MHz, and 167 MHz * Internally self-timed output buffer control to eliminate the need to use asynchronous OE/ * Fully registered inputs and outputs for pipelined operation * Byte Write capability * 2.5-V core power supply * 2.5-V I/O power supply * Fast clock-to-output times * 2.5 ns for 250-MHz device * Clock enable CEN\\\\ pin to suspend operation * Synchronous self-timed writes * CY7C1462KVE25 available in JEDEC-standard Pb-free 100-pin TQFP, and Pb-free and non Pb-free 165-ball FBGA packages. * IEEE 1149.1 JTAG-Compatible Boundary Scan * Burst capability — linear or interleaved burst order * “ZZ” sleep mode option * On-chip error correction code ECC to reduce soft error rate SER
