CAT24C32: EEPROM 串行 32-Kb I2C
* Supports Standard, Fast and Fast-PlusI2C Protocol * 1.7 V to 5.5 V Supply Voltage Range * 32-Byte Page Write Buffer * Hardware Write Protection for entire memory * Schmitt Triggers and Noise Suppression Filters on I²C Bus Inputs SCL and SDA * Low power CMOS technology * 1,000,000 program/erase cycles * 100 year data retention * Industrial and Extended temperature range * RoHS compliant 8-pin PDIP, SOIC, TSSOP, UDFN and WLCSP 5-ball packages packages * PDIP, SOIC, TSSOP, TDFN and UDFN 8-lead Packages * This Device is PbFree, Halogen Free/BFR Free, and RoHS Compliant
频率 1 MHz
供电电流 2 mA
存取时间Max 900 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.7V ~ 5.5V
引脚数 5

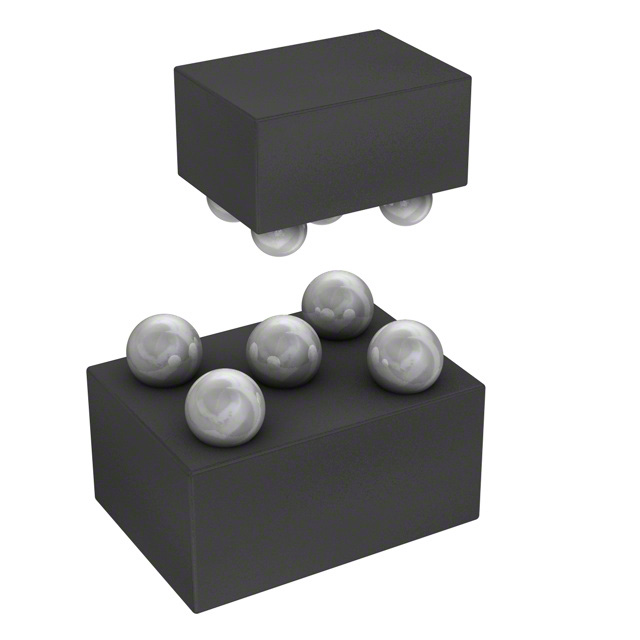

封装 WLCSP-5
封装 WLCSP-5
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Personal Computers, Set Top Box, Vending Machines, DRAM Modules, Heal, Cellular Phones, Hard Disk Drives, Internet Phone Handsets, Audio Players, Wireless LANs, Video Tape Recorder, CDRW, Notebook PC, Printers, Cable Modems, TV, Health Mete, Video Games, Memory Modules, Two Way Radios, Alarm Systems
RoHS标准 RoHS Compliant
含铅标准 PB free
