CAB 4 GS

FISCHER ELEKTRONIK  CAB 4 GS  跳线母线, 跨接器, 0.6至0.64mm绕接线引脚与0.6至0.7mm直径, 2 路, 2.54 mm

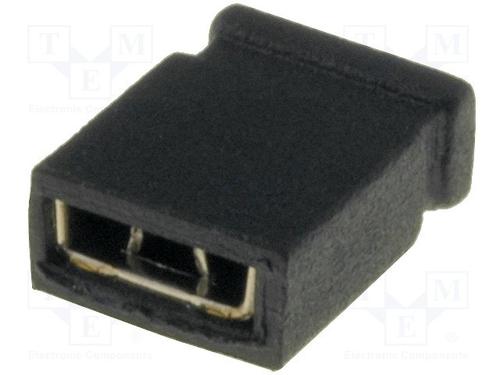

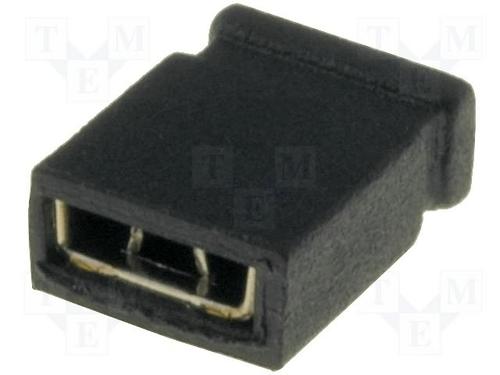

The from Fischer Elektronik is a two contact jumper with 2.54mm pitch spacing. This closed version black colour jumper is used for 0.6mm to 0.64mm wire wrap pins and 0.6mm to 0.7mm diameter open designs. It can be mounted behind and next to each other.

.

0.1µm gold plated surface contacts

.

5µm tin plated contact sleeve

.

Insert depth of 4mm to 6.1mm

.

Nominal current of 1.5A

.

Nominal voltage of 250VAC

.

Polybutylene terephthalate PBT insulated body

.

High temperature range from -40°C to 105°C
