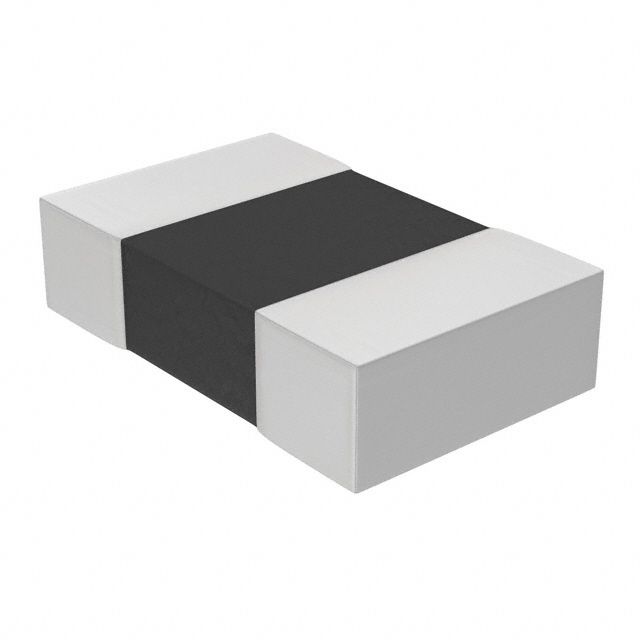

0805 0.001 uF 50 V 5 % 容差 X7R 表面贴装 陶瓷电容
MLCC-多层陶瓷器
得捷:
CAP CER 1000PF 50V X7R 0805
立创商城:
1nF ±5% 50V
贸泽:
多层陶瓷电容器MLCC - SMD/SMT 1.0nF 50V X7R 5%
艾睿:
This CC0805JRX7R9BB102 multilayer ceramic capacitor from Yageo uses different ceramic dielectric materials to achieve a variety of capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its capacitance value is 0.001uF. It has a tolerance of 5%. This product is 2 mm long, 0.6 mm tall and 1.25 mm deep.
安富利:
Cap Ceramic 0.001uF 50V X7R 5% SMD 0805 125°C Paper T/R
Verical:
Cap Ceramic 0.001uF 50V X7R 5% Pad SMD 0805 125C T/R
额定电压DC 50.0 V
电容 0.001 µF
容差 ±5 %
无卤素状态 Halogen Free
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±5 %
额定电压 50 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.6 mm
封装公制 2012
封装 0805
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CC0805JRX7R9BB102 Yageo 国巨 | 当前型号 | 当前型号 |
C0805C102J5RAC7800 基美 | 类似代替 | CC0805JRX7R9BB102和C0805C102J5RAC7800的区别 |
CC0805JPX7R9BB102 国巨 | 类似代替 | CC0805JRX7R9BB102和CC0805JPX7R9BB102的区别 |
08055C102JAT2A 艾维克斯 | 功能相似 | CC0805JRX7R9BB102和08055C102JAT2A的区别 |
