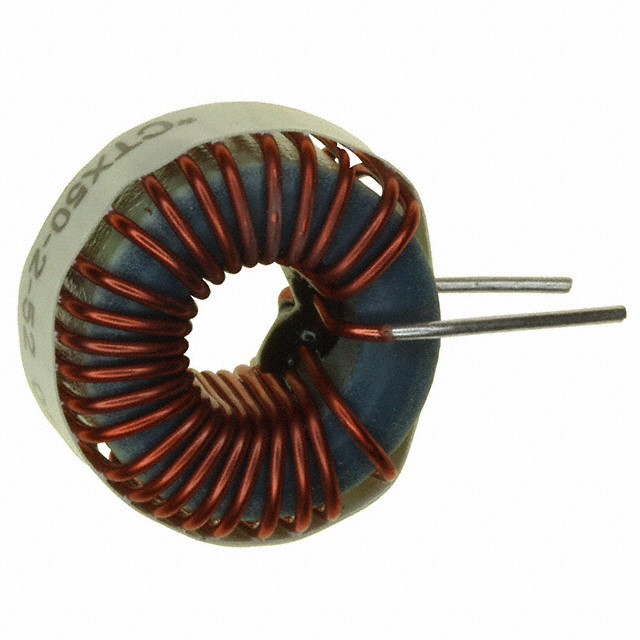

COILTRONICS CTX50-2-52-R 电感, LCPI, 50uH, 4.9A, 直型安装
* Surface Mount Magnetics That Can Be Used as Single or Coupled Inductors or 1:1 Transformers That Provide Isolation Between Two Windings
* OCTA-PACs Are Designed Around High Frequency, Low Loss Material
* ECONO-PACs Are a Lower Cost Version of OCTA-PACs Offering High Saturation Flux Density
* OCTA-PAC PLUSs Offer Higher Current Ratings and Higher Saturation Flux Densities Than OCTA-PAC and ECONO-PAC
* Secure 4-Terminal Mounting
* Inductor More Versatile Inductance Combination By Series or Parallel Connections
额定电流 4.9 A
容差 ±20 %
电感 50 µH
电感公差 ±20 %
测试频率 100 kHz
电阻DC） 0.326 Ω
额定电流DC 4.9 A
工作温度Max 75 ℃
工作温度Min -40 ℃
电阻DC Max 0.0326 Ω
安装方式 Through Hole
引脚数 2
封装 Radial

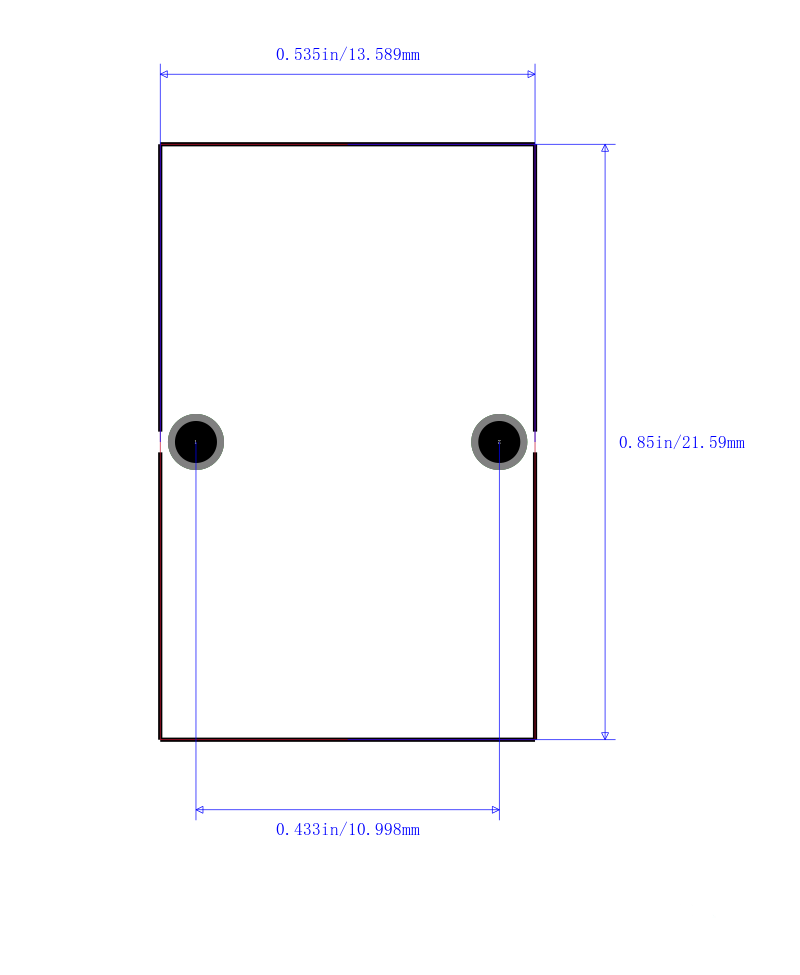

长度 21.6 mm
宽度 13.6 mm
高度 21.6 mm
直径 21.6 mm
封装 Radial
工作温度 -40℃ ~ 75℃
产品生命周期 Unknown
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CTX50-2-52-R Cooper Bussmann 库柏 | 当前型号 | 当前型号 |
CTX50-2-52M-R 伊顿巴斯曼 | 功能相似 | CTX50-2-52-R和CTX50-2-52M-R的区别 |
CTX50-2-52LP-R Coiltronics/Cooper Bussmann | 功能相似 | CTX50-2-52-R和CTX50-2-52LP-R的区别 |
