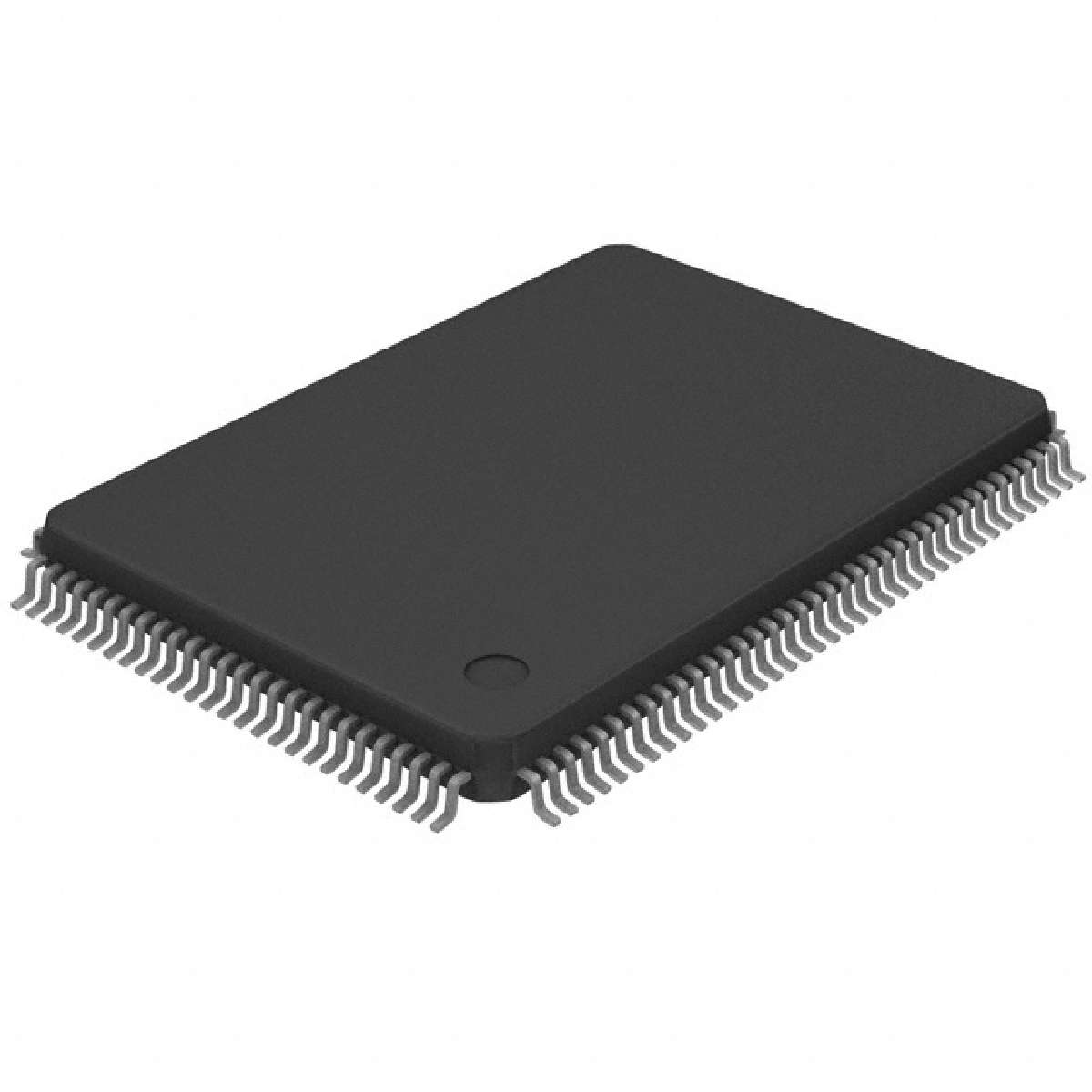

C8051F120

8位微控制器 -MCU

The C8051F12x and C8051F13x device families are fully integrated mixed-signal System-on-a-Chip MCUs with 64 digital I/O pins 100-pin TQFP package or 32 digital I/O pins 64-pin TQFP package. Highlighted features are listed below. Refer to Table 1.1 for specific product feature selection.

• High-Speed pipelined 8051-compatible CIP-51 microcontroller core 100 MIPS or 50 MIPS

• In-system, full-speed, non-intrusive debug interface on-chip

• True 12 or 10-bit 100 ksps ADC with PGA and 8-channel analog multiplexer

• True 8-bit 500 ksps ADC with PGA and 8-channel analog multiplexer C8051F12x Family

• Two 12-bit DACs with programmable update scheduling C8051F12x Family

• 2-cycle 16 by 16 Multiply and Accumulate Engine /1/2/3 and C8051F130/1/2/3

• 128k bytes or 64k bytes of in-system programmable FLASH memory

• 8448 8k + 256 bytes of on-chip RAM

• External Data Memory Interface with 64k byte address space

• SPI, SMBus/I2C, and 2 UART serial interfaces implemented in hardware

• Five general purpose 16-bit Timers

• Programmable Counter/Timer Array with 6 capture/compare modules

• On-chip Watchdog Timer, VDD Monitor, and Temperature Sensor
