C0805C103M2RACTU

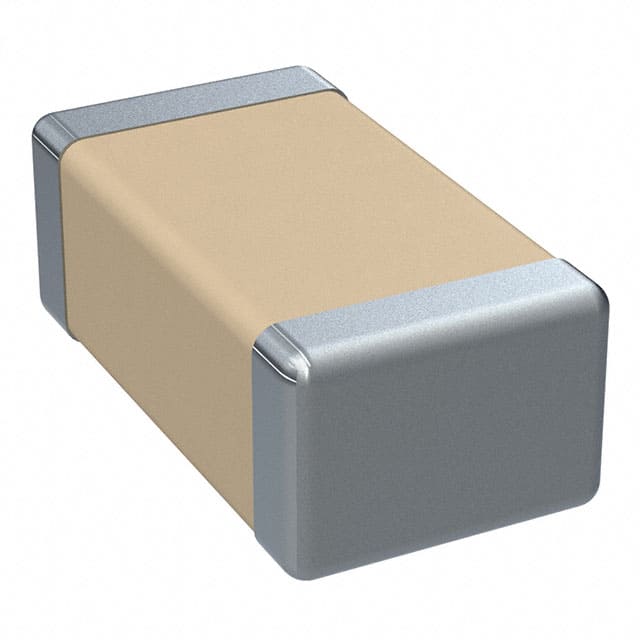

C0805C103M2RACTU图片1

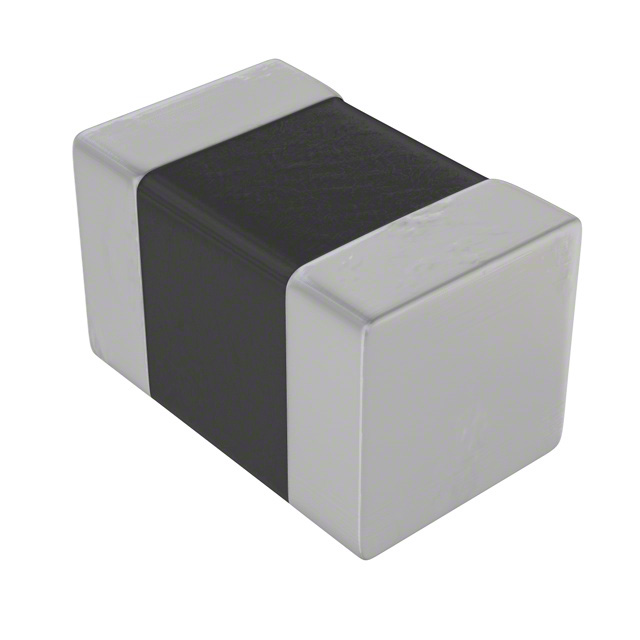

C0805C103M2RACTU图片2
C0805C103M2RACTU图片3
C0805C103M2RACTU图片4
C0805C103M2RACTU图片5
C0805C103M2RACTU概述

Cap Ceramic 0.01uF 200V X7R 20% SMD 0805 125℃ T/R

±20% 200V 陶瓷器 X7R 0805(2012 公制)


得捷:
CAP CER 10000PF 200V X7R 0805


艾睿:
Since this C0805C103M2RACTU multilayer ceramic capacitor from Kemet has multiple layers of dielectric and electrodes, you&s;ll be getting high stability and low losses for resonant circuit applications. It can withstand a voltage of 200 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has a tolerance of 20%. Its capacitance value is 0.01uF. This product is 2 mm long, 0.78 mm tall and 1.25 mm deep.


安富利:
Cap Ceramic 0.01uF 200V X7R 20% SMD 0805 125°C Plastic T/R


Verical:
Cap Ceramic 0.01uF 200V X7R 20% Pad SMD 0805 125C T/R


C0805C103M2RACTU中文资料参数规格
技术参数

额定电压DC 200 V

绝缘电阻 100 GΩ

电容 10000 pF

容差 ±20 %

电介质特性 X7R

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 200 V

封装参数

安装方式 Surface Mount

封装公制 2012

封装 0805

引脚间距 0.75 mm

外形尺寸

长度 2 mm

宽度 2 mm

高度 0.78 mm

封装公制 2012

封装 0805

引脚间距 0.75 mm

物理参数

介质材料 Ceramic

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 旁通,去耦, 通用

符合标准

RoHS标准 RoHS Compliant

含铅标准

数据手册

C0805C103M2RACTU引脚图与封装图
C0805C103M2RACTU引脚图

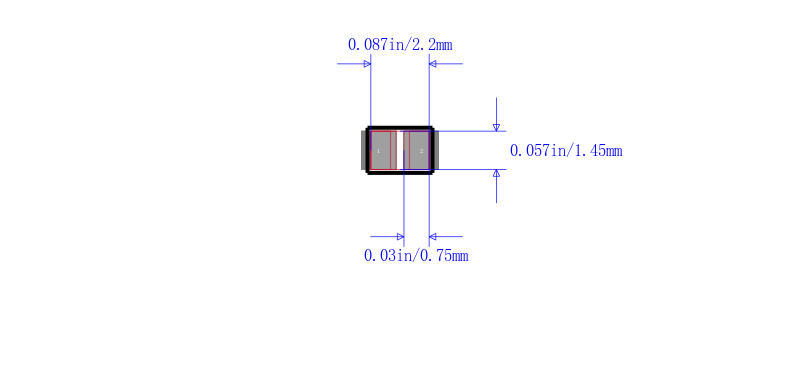

C0805C103M2RACTU封装图
C0805C103M2RACTU封装焊盘图
在线购买C0805C103M2RACTU
型号: C0805C103M2RACTU
描述:Cap Ceramic 0.01uF 200V X7R 20% SMD 0805 125℃ T/R
替代型号C0805C103M2RACTU
型号/品牌 代替类型 替代型号对比

C0805C103M2RACTU

KEMET Corporation 基美

当前型号

当前型号

C0805C103M1RAC@3123

基美

完全替代

C0805C103M2RACTU和C0805C103M1RAC@3123的区别

C0805C103K2RACTU

基美

类似代替

C0805C103M2RACTU和C0805C103K2RACTU的区别

C0805C103M2RAC

基美

类似代替

C0805C103M2RACTU和C0805C103M2RAC的区别
