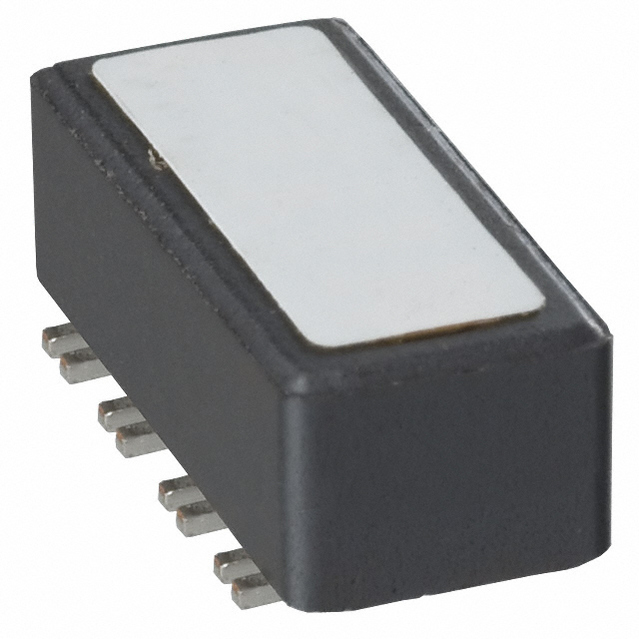

LAIRD TECHNOLOGIES CM5022R800R-10 共模扼流圈, 100MHZ, SMD, 80R
The is a power and signal EMI filtering Common Mode Array provides EMI filtering for both power and data lines all in one part. This product is available from 4 lines up to 8 lines and is effective for power line filtering, USB, FireWire, 10T, 100T, RJ11/45 and gigabit.
频率 100 MHz
额定电流 5 A
测试频率 100 MHz
额定电流Max 5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 20 mΩ
安装方式 Surface Mount
引脚数 16
封装 12.57mm x 5.72mm x 4.32mm
长度 12.6 mm
宽度 5.72 mm
高度 5 mm
封装 12.57mm x 5.72mm x 4.32mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, 工业, Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CM5022R800R-10 Laird Technologies 莱尔德 | 当前型号 | 当前型号 |
CM5022R800R-00 莱尔德 | 类似代替 | CM5022R800R-10和CM5022R800R-00的区别 |
