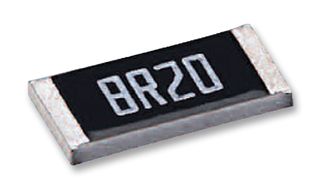

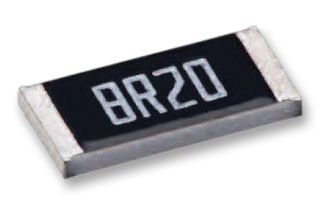

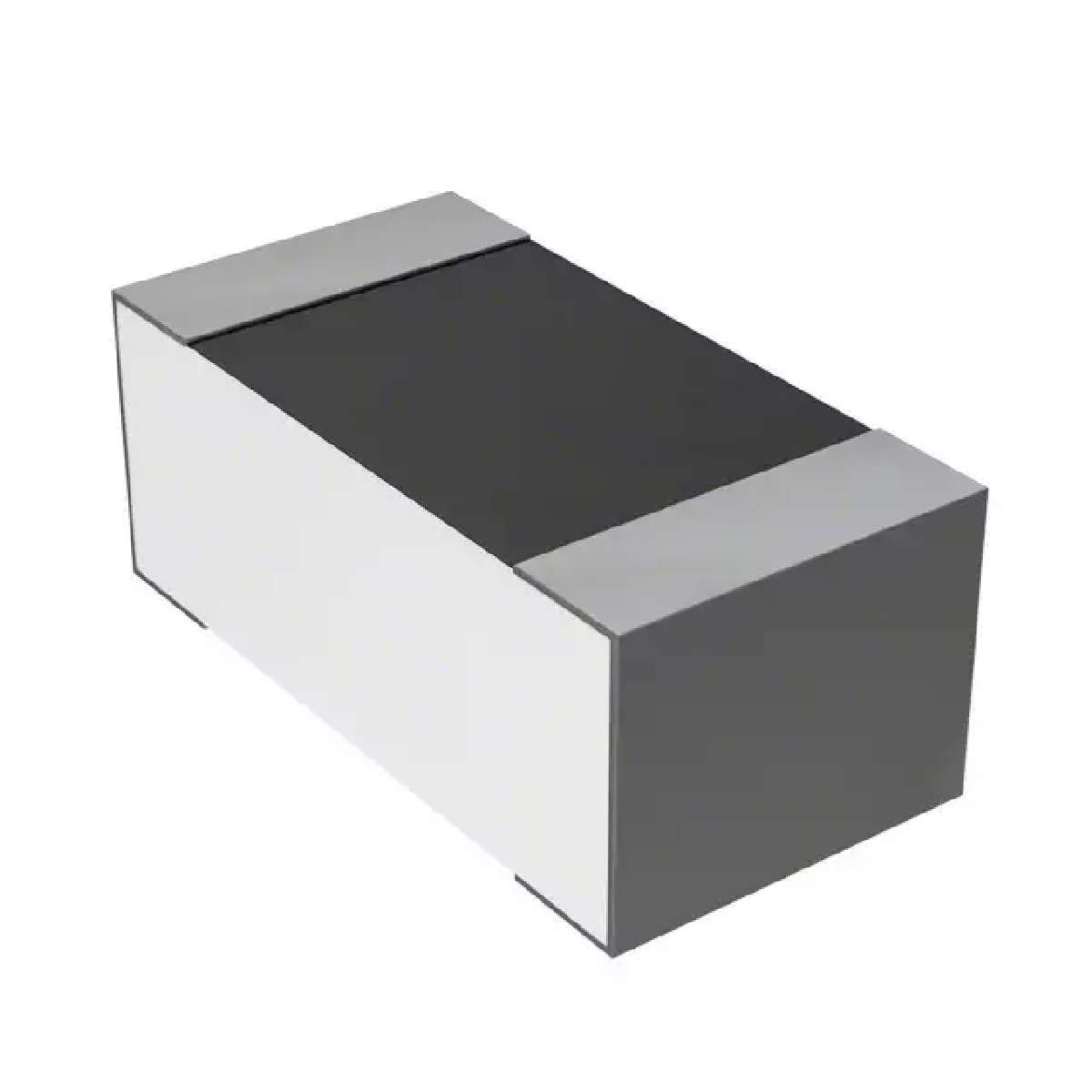

TE CONNECTIVITY CPF0603B1M0E1 片式电阻器, 表面贴装, 薄膜, CPF系列, 1 Mohm, 50 V, 0603 [1608公制], 63 mW, ± 0.1%
The is a thin file Precision Capacitor with 0603 chip, for industrial control and instrumentation. The high stability precision chip resistor range offering various power dissipations relating to a wide range of chip size. The thin file precision capacitor offers TCR"s down to 15ppm/°C and resistance tolerance to 0.1%. Standard values are within the IEC 63 E96 and E24 value grids. The CPF has accurate and uniform physical dimensions to facilitate placement.
- .
- Electroplated 100% Matte Sn Terminal Finish
额定电压DC 50.0 V
容差 ±0.1 %
额定功率 63 mW
产品系列 CPF
电阻 1 MΩ
阻值偏差 ±0.1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.45 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 155℃
温度系数 ±25 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
制造应用 工业, 医用, Industrial, Communications & Networking, Sensing & Instrumentation, Consumer Electronics, Power Management, 传感与仪器, 通信与网络, Portable Devices, Medical
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CPF0603B1M0E1 TE Connectivity 泰科 | 当前型号 | 当前型号 |
1879417-8 Neohm | 类似代替 | CPF0603B1M0E1和1879417-8的区别 |
