CFR25J2M2

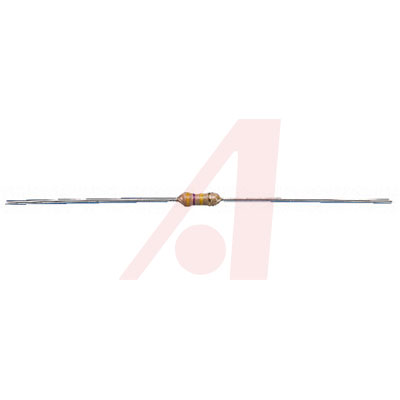

CFR25J2M2图片1
CFR25J2M2图片2
CFR25J2M2图片3
CFR25J2M2图片4
CFR25J2M2图片5
CFR25J2M2图片6
CFR25J2M2概述

TE CONNECTIVITY  CFR25J2M2  通孔电阻器, CFR系列, 2.2 Mohm, 330 mW, ± 5%, 250 V, 轴向引线

The resistive element comprises a thin film of carbon, deposited onto a high thermal conductivity ceramic core. Metal end caps are force fitted to the element prior to spiraling value. Tinned copper lead wires are welded to the end caps and the components are then coated. One coat of phenolic resin followed by three coats of epoxy resin. All resistors are tested for value and tolerance.

**Features:**

* Low Cost, Combined with High Reliability, Make these Components Suitable for Use in Most Types of Circuits, Including Audio, Communications, Measurement and Computer Applications

* Premium Quality Carbon Film Resistors whose Ceramic Core has a High Alumina Content Offering Power to Size Ratios Not Normally Associated with Carbon Film Product

* Available in 5 Power Ratings from 1 Ω to 10 MΩ. The Smallest Case Size CFR16 has a Full 0.25 W Power Ratings

CFR25J2M2中文资料参数规格
技术参数

额定电压DC 250 V

额定功率 330 mW

产品系列 CFR25

电阻 2.2 MΩ

阻值偏差 ±5 %

额定电压 250 V

封装参数

安装方式 Through Hole

封装 轴向引线

外形尺寸

长度 6.8 mm

封装 轴向引线

物理参数

温度系数 -1500ppm/℃ ~ 0ppm/℃

其他

产品生命周期 Obsolete

包装方式 Ammo Pack

符合标准

RoHS标准 RoHS Compliant

ELV标准 Compliant

REACH SVHC标准 No SVHC

REACH SVHC版本 2014/06/16

数据手册

CFR25J2M2引脚图与封装图

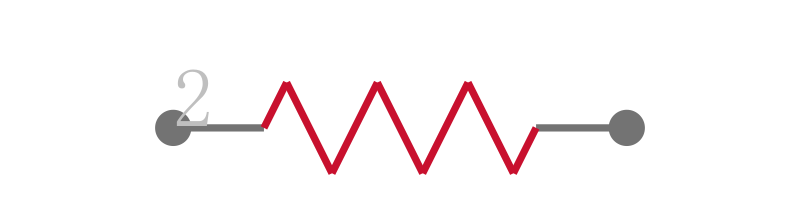

CFR25J2M2引脚图

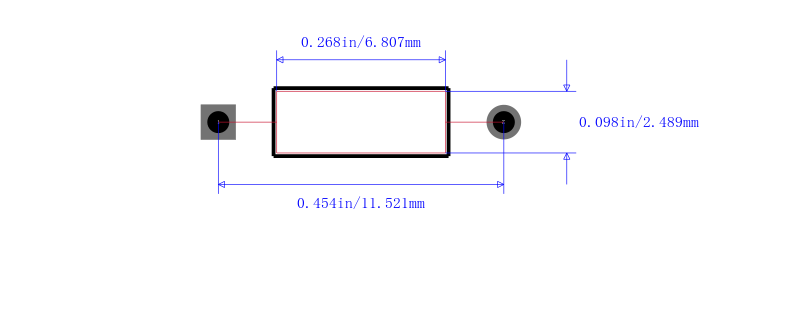

CFR25J2M2封装图

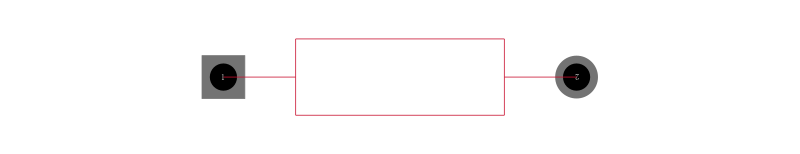

CFR25J2M2封装焊盘图
在线购买CFR25J2M2
型号: CFR25J2M2
制造商: TE Connectivity 泰科
描述:TE CONNECTIVITY  CFR25J2M2  通孔电阻器, CFR系列, 2.2 Mohm, 330 mW, ± 5%, 250 V, 轴向引线
