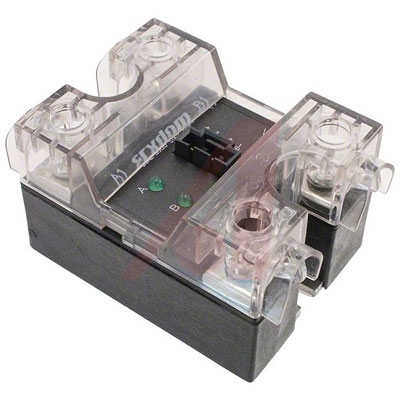

CC4850W2U

Relay SSR 10mA 32V DC-IN 50A 600V AC-OUT 8Pin

has used innovation and technology to expand its line of Dual SSRs creating the Evolution Dual series. Evolving from Crydom"s successful “D” and “H12” series of Dual SSRs, the Evolution Duals offer an improved mechanical and thermal design providing higher capacity outputs and significantly increased power density. Screw termination suitable for rated load currents to 50 amps/ 660 VAC per channel is standard in either “SSR" or “Contactor” output termination configurations. Each AC output channel features high power SCRs with high surge ratings and is available with either zero voltage or random turn on.

The new generation of Dual SSRs with four different input termination options pin, locking connector, detachable barriers w/screws, and direct wire are available with three different input voltage ratings including a wide range 4 to 32 VDC current regulated version.

The new two channel relays are available with an innovative optional clear IP20 touch safe cover allowing a clear view of the power lead terminations while providing touch safe operation. Crydom’s AC output Evolution Dual Solid State Relays also feature LED input status indicators for each channel.

Crydom Dual SSRs are RoHS compliant, CE certified and have pending UL and cUL recognition.

**Features**

* 25 A or 50 A Output Rating at 40°C

* 4-32 VDC Control Input, 4-15 and 15-32 VDC Control Input Available

* Zero Voltage Switching

* SCR Output for Heavy Industrial Loads

* Industry Standard Panel Mount Package

* Input Status LED Indicators
