CRD-001概述

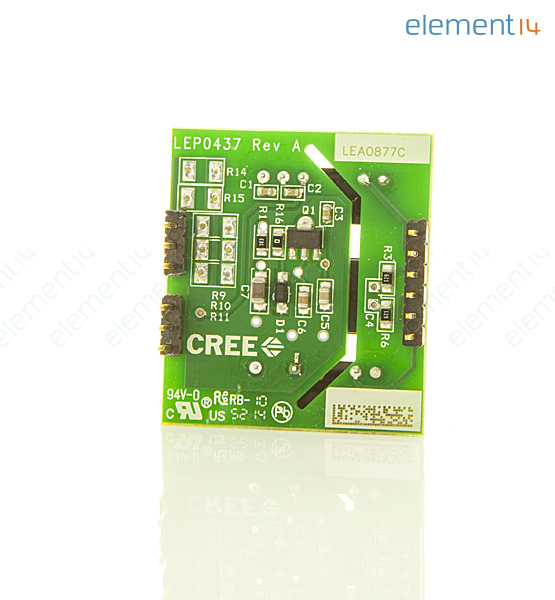

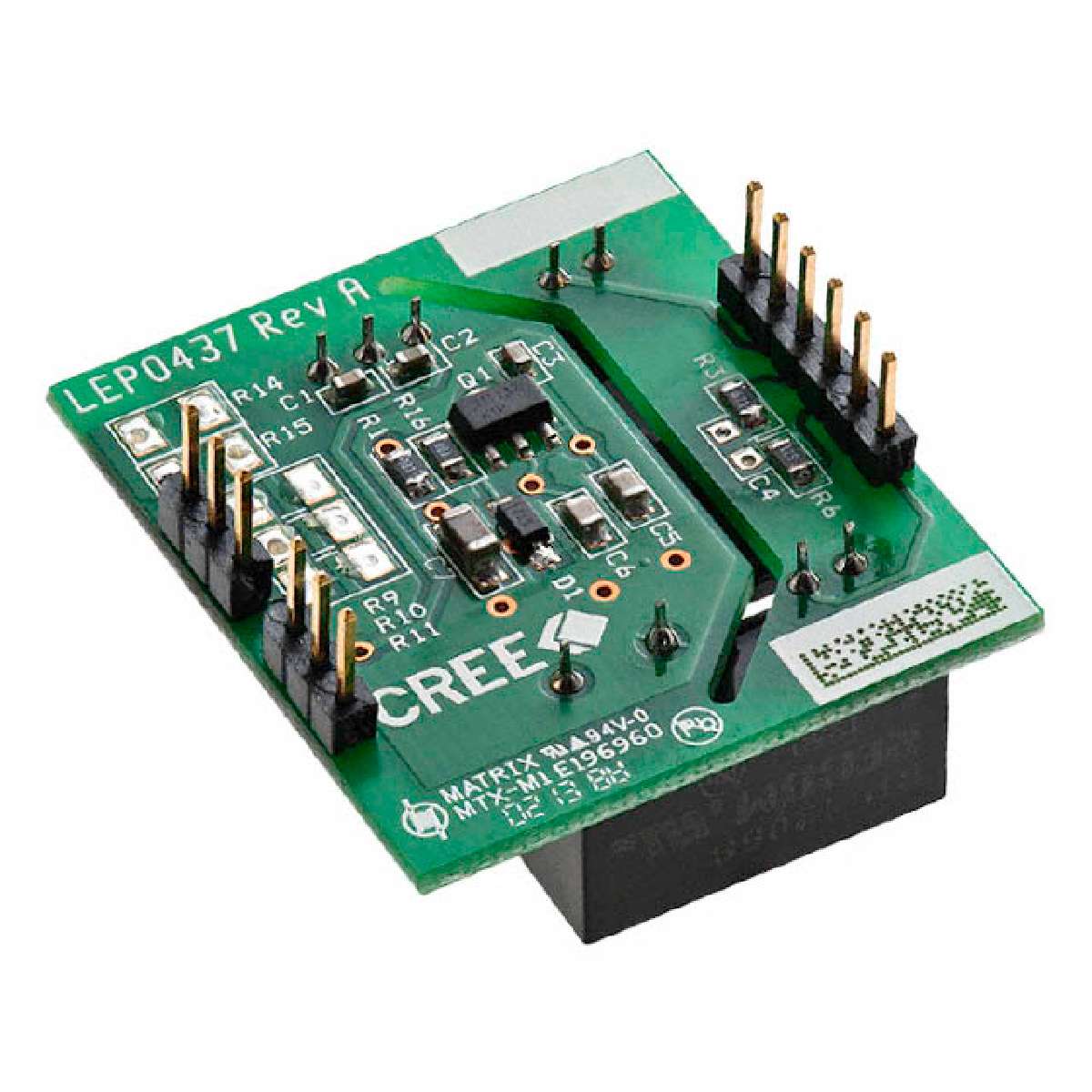

CREE CRD-001 评估板, 用于所有C2M SiC Mosfet门驱动器, 适合评估IXDN609Sl
The is a universal gate driver evaluation board for all C2M SiC MOSFETs. This board is suitable for evaluating IXDN609SI SiC MOSFET. The circuit consists of two isolated DC to DC converters, optoisolator and gate driver integrated onboard. The Clare/IXYS IXDN609SI can provide 35V output swing and withstand up to 9A of current with a typical output resistance of 0.8ohm. The optoisolator from Avago ACPL-4800-300E has high common mode transient immunity 30kV/usec and can operate from 4.5 to 20V. The circuit can be modified to work with either isolated or non isolated configuration depending on the application.
- .
- Supports 1200V or 1700V MOSFET"s
- .
- Compatible with 1W and 2W DC to DC converters
