PANASONIC ELECTRIC WORKS CB1-P-24V 汽车继电器, CB系列, SPDT, 24 VDC, 20 A, 通孔安装, 焊接

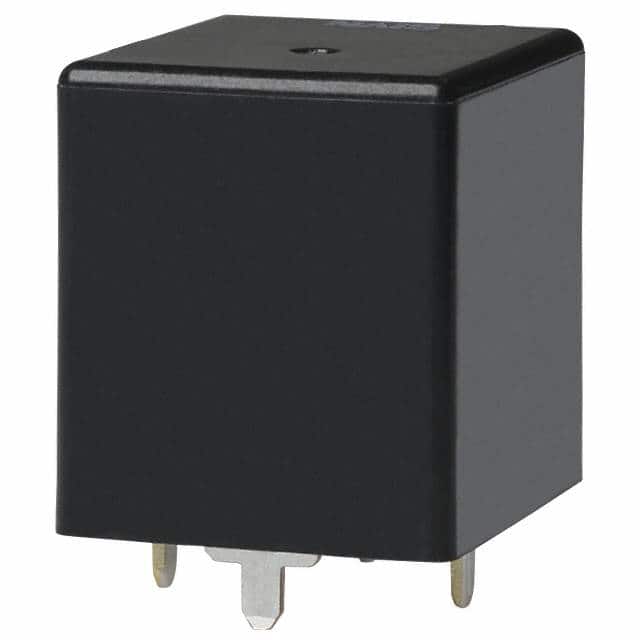

The is a 1-pole Automotive Relay with ISO terminal arrangement, 1 form-C contact configuration, PCB board type mounting. Terminals are all solder plated. Compact form factor realized with space saving 22 x 26mm small base area thanks to integrated bobbin and base construction. Features high switching capacity of 40A.
- .
- Relay is compact and high capacity
- .
- 125°C High thermal resistance
- .
- Sealed type protective construction
额定电压DC 28 V

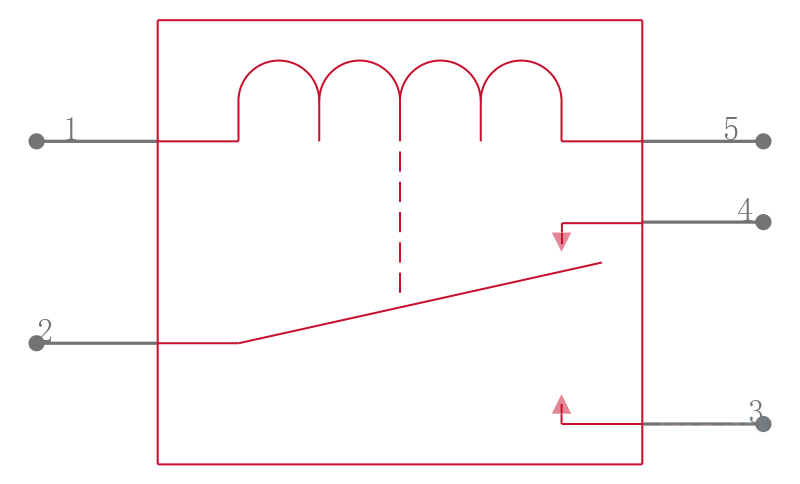

触点类型 SPDT
功耗 1.8 W
触点额定电流 20.0 A
线圈电压 24 VDC
线圈电流 75 mA
线圈功率DC 1.80 W
线圈电阻 320 Ω
载流 40.0 A
线圈电压DC 24 V
线圈功率 1.8 W
额定功率Max 1.8 W
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 5
封装 Through Hole

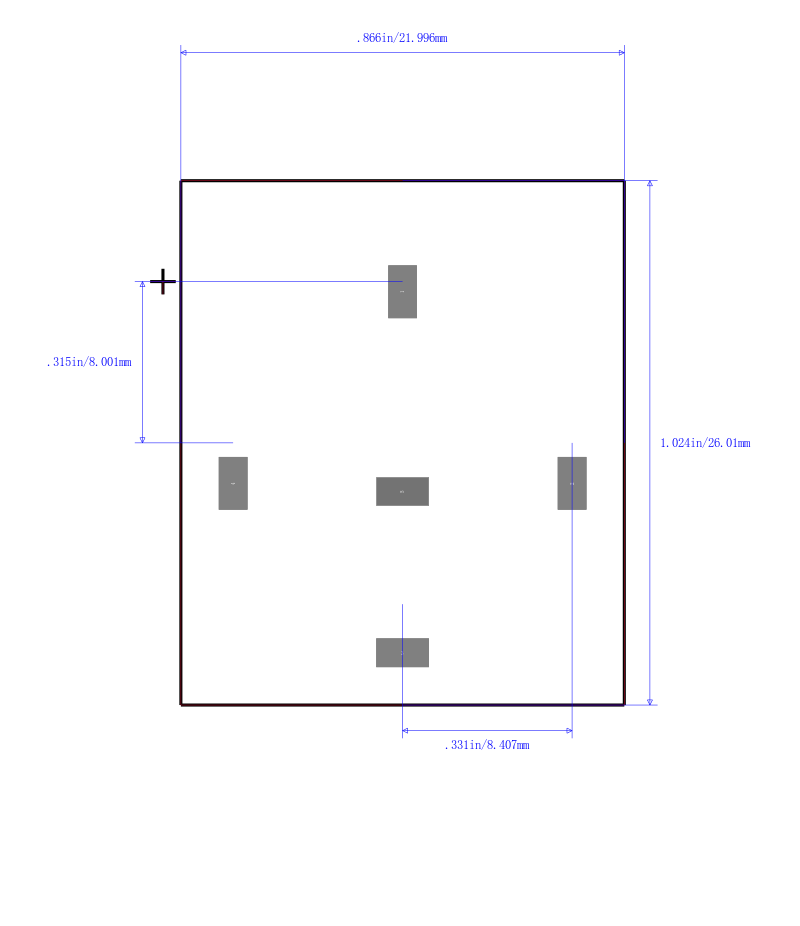

长度 26 mm
宽度 22 mm
高度 26 mm
封装 Through Hole
触点材质 Silver Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 工业, 农业, 车用, Automotive, Industrial, Automotive, Industrial, Agriculture, Agriculture
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536410050
