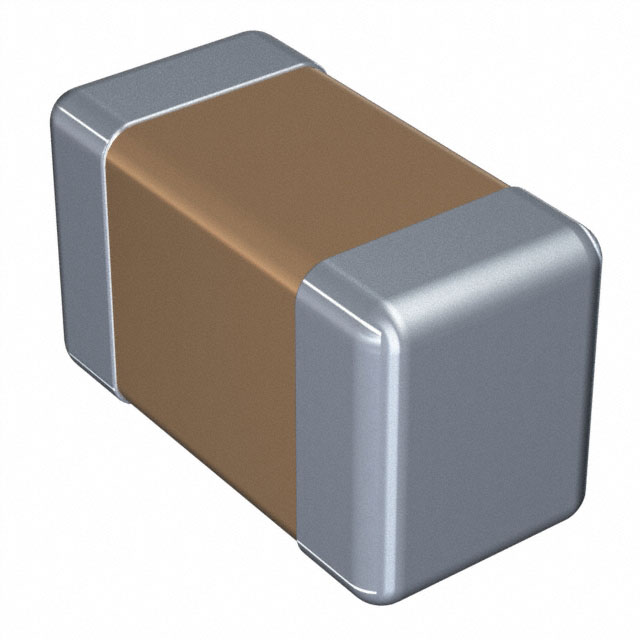

KEMET C0603C471J5GACAUTO 多层陶瓷电容器, 表面贴装, AEC-Q200 MLCC系列, 470 pF, ± 5%, C0G / NP0, 50 V, 0603 [1608 公制]
MLCC-多层陶瓷器
欧时:
Capacitor Multi layer Ceramic 0603 470pF
得捷:
CAP CER 470PF 50V C0G/NP0 0603
立创商城:
470pF ±5% 50V
e络盟:
多层陶瓷电容器, 表面贴装, AEC-Q200, 470 pF, 50 V, 0603 [1608 公制], ± 5%, C0G / NP0, AEC-Q200 C系列
艾睿:
Since this C0603C471J5GACAUTO multilayer ceramic capacitor from Kemet has multiple layers of dielectric and electrodes, you&s;ll be getting high stability and low losses for resonant circuit applications. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a tolerance of 5%. Its capacitance value is 470pF. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep.
Verical:
Cap Ceramic 470pF 50V C0G 5% Pad SMD 0603 125C Extreme Low ESR Automotive T/R
Newark:
# KEMET C0603C471J5GACAUTO SMD Multilayer Ceramic Capacitor, 0603 [1608 Metric], 470 pF, 50 V, ± 5%, C0G / NP0 New
额定电压DC 50.0 V
电容 470 pF
容差 ±5 %
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.60 mm
宽度 0.80 mm
高度 0.8 mm
封装公制 1608
封装 0603
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Automotive, 车用, 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C0603C471J5GACAUTO KEMET Corporation 基美 | 当前型号 | 当前型号 |
C0603C471J5GACTU 基美 | 完全替代 | C0603C471J5GACAUTO和C0603C471J5GACTU的区别 |
GRM1885C1H471JA01D 村田 | 类似代替 | C0603C471J5GACAUTO和GRM1885C1H471JA01D的区别 |
GCM1885C1H471JA16D 村田 | 类似代替 | C0603C471J5GACAUTO和GCM1885C1H471JA16D的区别 |
