C091 31F012 100 2

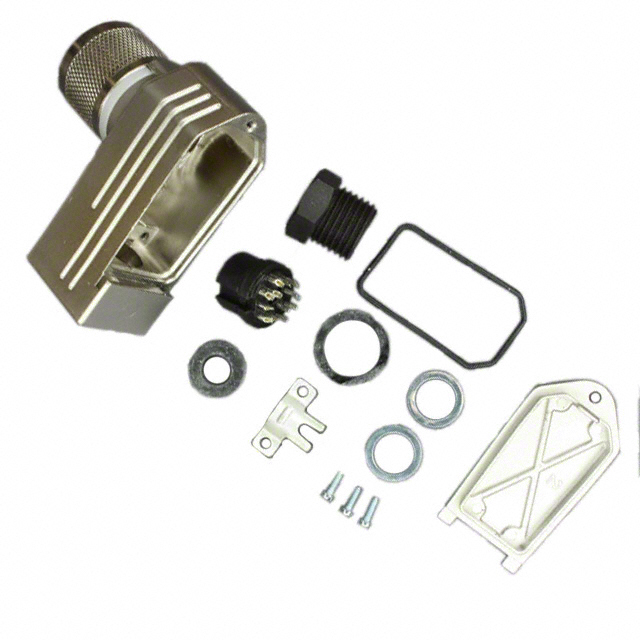

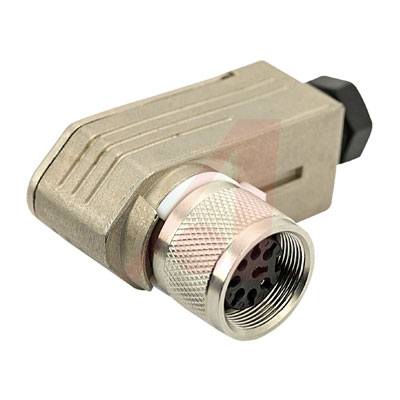

connector, circular din, rt angle female cable conn, 12 silver plt socket cont, ip67

Solder Termination, Right Angle Female Cable

All metal for EMI applications. Standard threaded coupling. Die-cast brass shells with nickel-plating for 6 mm cables, 24-20 AWG wires.

.

* IP Rating:** IP67 water resistant. ** Current Rating:** 60-250 V, 3-5 A. Shielded. Solder area is tin-plated on receptacles. ** Series C091D Right-Angle Series Specifications.** Rated IP67 in mated condition. ** Current Rating:** 5 A; 12 and 14 contact solder termination — 3 A. 20-26 AWG wires. ** Materials. Dielectric Material:** Thermoplastic; Housing — Zinc alloy, nickel-plated. Locking Clip — Brass; Seal — Neoprene. Also available for 8 mm in 7 to 14 contacts and in gold-plating contacts in 3 DIN to 8 DIN contacts. Metal threaded coupling ACC to IEC 130-9. ** Cable Connector Length:** 2.3".

Electrical devices to which connectors belong have to be protected for safety reasons from outside influences like dust, foreign objects, direct contact, moisture and water. This protection is provided on industrial connectors by their housings with their latching devices and sealed cable entries.
