C6713 DSP STARTER KIT概述

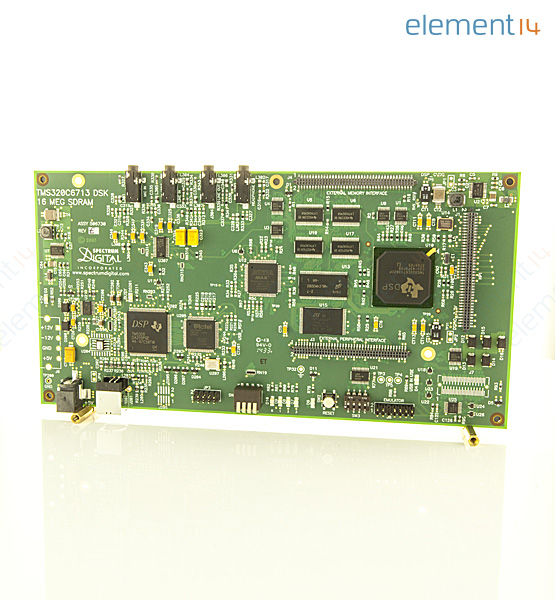

The C6713 DSP STARTER KIT是一个低成本 standalone开发平台 that enables users to evaluate和develop应用用于the TI's TMS320C6713 DSP 运行频率 225MHz. The新手套件also serves as a 硬件参考设计用于the TMS320C6713 DSP. The DSP on the新手套件接口s to on电路板外部设备 through a 32位wide EMIF External存储器接口. The SDRAM, 闪存和CPLD are all connected to the bus. EMIF 信号s are also connected daughter card扩展连接器 which are used 用于third party add in电路板s. It包括4 LEDs和a 4 position DIP switch as a simple way to provide the user with interactive feedback. Both are accessed by reading和writing to the CPLD registers. The套件设计to work with TI's code composer studio 开发 environment. Code composer communicates with the新手套件through an内嵌型JTAG emulator with a USB host 接口. It can also be used with an外部emulator through the外部JTAG 连接器.

The 是一个低成本 standalone开发平台 that enables users to evaluate和develop应用用于the TI"s TMS320C6713 DSP 运行频率 225MHz. The新手套件also serves as a 硬件参考设计用于the TMS320C6713 DSP. The DSP on the新手套件接口s to on电路板外部设备 through a 32位wide EMIF External存储器接口. The SDRAM, 闪存和CPLD are all connected to the bus. EMIF 信号s are also connected daughter card扩展连接器 which are used 用于third party add in电路板s. It包括4 LEDs和a 4 position DIP switch as a simple way to provide the user with interactive feedback. Both are accessed by reading和writing to the CPLD registers. The套件设计to work with TI"s code composer studio 开发 environment. Code composer communicates with the新手套件through an内嵌型JTAG emulator with a USB host 接口. It can also be used with an外部emulator through the外部JTAG 连接器.

.: 一个AIC23立体声编解码器

.: 16MB 同步DRAM

.: 512KB非易失性闪存存储器 256KB用于默认配置

.: 兼容电线环绕原型卡

.: 通过CPLD中的寄存器执行电路板软件配置

.: 配置引导选项

.: 标准扩展连接器用于子电路卡

.: 通过板载USB主接口或外部仿真器实现JATG仿真功能

.: 单路电源+5V

.: 板载IEEE 1149.1 JTAG连接用于可选模拟器调试

此设备只可在实验室测试环境中使用.

此产品自购买之日起有一年质保期.

C6713 DSP STARTER KIT中文资料参数规格

技术参数

位数 32

内核架构 C6000

符合标准

RoHS标准 RoHS Compliant

REACH SVHC标准 No SVHC

数据手册

在线购买C6713 DSP STARTER KIT

型号： C6713 DSP STARTER KIT

制造商： Spectrum Digital

描述：The C6713 DSP STARTER KIT是一个低成本 standalone开发平台 that enables users to evaluate和develop应用用于the TI's TMS320C6713 DSP 运行频率 225MHz. The新手套件also serves as a 硬件参考设计用于the TMS320C6713 DSP. The DSP on the新手套件接口s to on电路板外部设备 through a 32位wide EMIF External存储器接口. The SDRAM, 闪存和CPLD are all connected to the bus. EMIF 信号s are also connected daughter card扩展连接器 which are used 用于third party add in电路板s. It包括4 LEDs和a 4 position DIP switch as a simple way to provide the user with interactive feedback. Both are accessed by reading和writing to the CPLD registers. The套件设计to work with TI's code composer studio 开发 environment. Code composer communicates with the新手套件through an内嵌型JTAG emulator with a USB host 接口. It can also be used with an外部emulator through the外部JTAG 连接器.
