CL21A106KAFN3NE

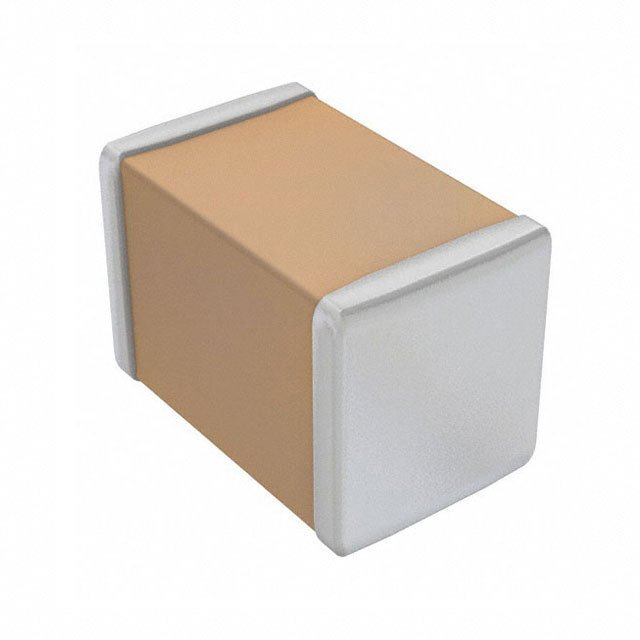

CL21A106KAFN3NE图片1

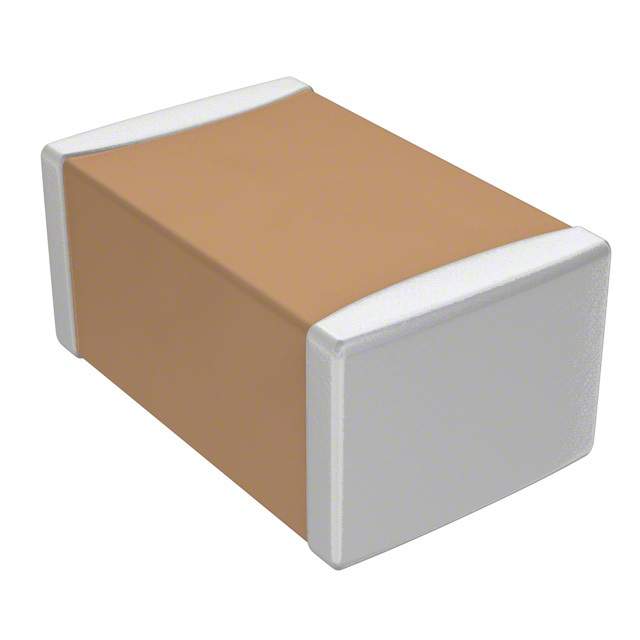

CL21A106KAFN3NE图片2
CL21A106KAFN3NE图片3

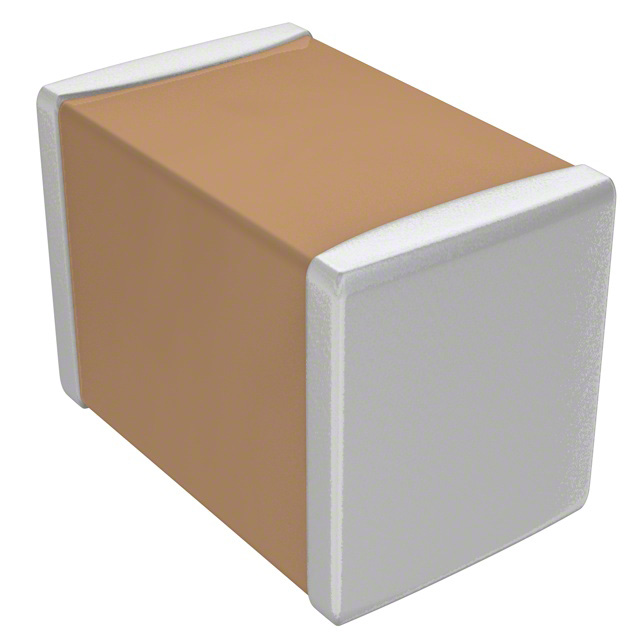

CL21A106KAFN3NE图片4
CL21A106KAFN3NE图片5

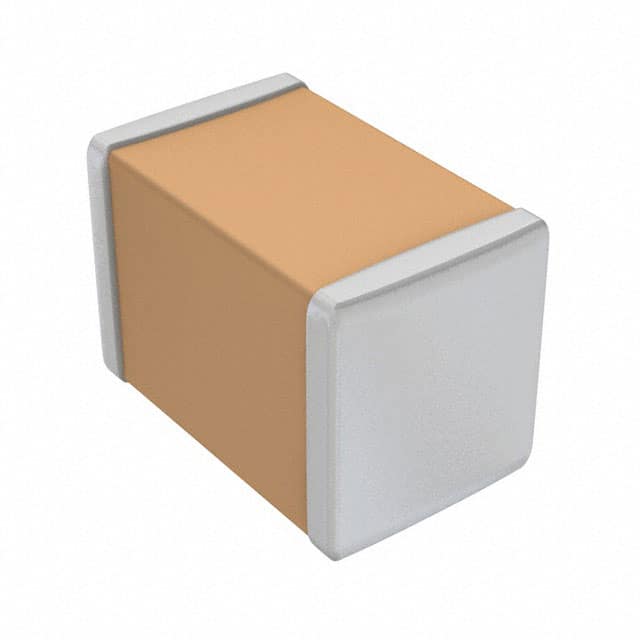

CL21A106KAFN3NE图片6
CL21A106KAFN3NE概述

CL 系列 0805 10 uF 25 V ±10 % X5R 表面贴装 多层 陶瓷电容

MLCC-多层陶瓷器


得捷:
CAP CER 10UF 25V X5R 0805


艾睿:
This CL21A106KAFN3NE multilayer ceramic capacitor MLCC from Samsung Electro-Mechanics consists of alternating layers of ceramic, which acts as the dielectric, and a metal layer, which acts as the electrodes. It can withstand a voltage of 25 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a tolerance of 10%. This product is 2 mm long, 1.25 mm tall and 1.25 mm deep. Its capacitance value is 10uF.


安富利:
Cap Ceramic 10uF 25V X5R 10% SMD 0805 85°C Embossed Plastic T/R


Verical:
Cap Ceramic 10uF 25V X5R 10% Pad SMD 0805 85C T/R


CL21A106KAFN3NE中文资料参数规格
技术参数

额定电压DC 25 V

绝缘电阻 10 GΩ

电容 10 µF

容差 ±10 %

工作温度Max 85 ℃

工作温度Min -55 ℃

额定电压 25 V

封装参数

安装方式 Surface Mount

封装公制 2012

封装 0805

外形尺寸

长度 2 mm

宽度 1.25 mm

高度 1.25 mm

封装公制 2012

封装 0805

厚度 1.25 mm

物理参数

材质 X5R/-55℃~+85℃

工作温度 -55℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 2000

制造应用 通用

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

CL21A106KAFN3NE引脚图与封装图

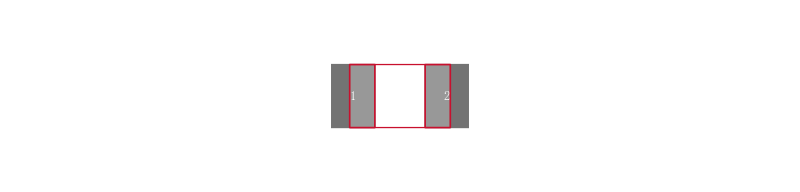

CL21A106KAFN3NE引脚图

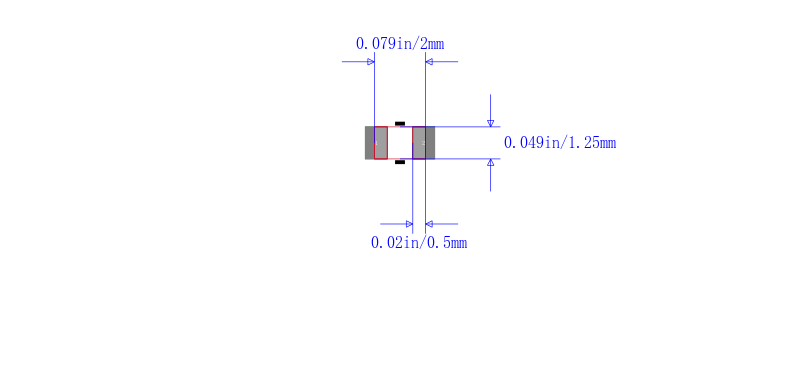

CL21A106KAFN3NE封装图
CL21A106KAFN3NE封装焊盘图
在线购买CL21A106KAFN3NE
型号: CL21A106KAFN3NE
制造商: Samsung 三星
描述:CL 系列 0805 10 uF 25 V ±10 % X5R 表面贴装 多层 陶瓷电容
替代型号CL21A106KAFN3NE
型号/品牌 代替类型 替代型号对比

CL21A106KAFN3NE

Samsung 三星

当前型号

当前型号

CL21A106KAYNNNG

三星

完全替代

CL21A106KAFN3NE和CL21A106KAYNNNG的区别

CL21A106KACLRNC

三星

完全替代

CL21A106KAFN3NE和CL21A106KACLRNC的区别

CL21A106KOQNNNE

三星

功能相似

CL21A106KAFN3NE和CL21A106KOQNNNE的区别
