MLCC-多层陶瓷电容器
MLCC-多层陶瓷器
得捷:
CAP CER 4.7UF 16V X5R 1206
立创商城:
4.7uF ±10% 16V
艾睿:

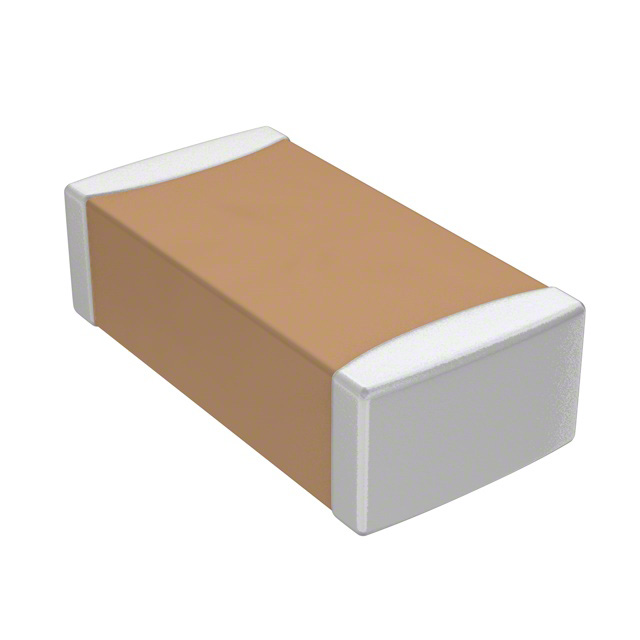

You can&s;t go wrong with this CL31A475KOCLNNC multilayer ceramic capacitor from Samsung Electro-Mechanics, it is the most commonly used type of capacitor for multiple applications! It can withstand a voltage of 16 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its capacitance value is 4.7uF. It has a tolerance of 10%. This product is 3.2 mm long, 0.85 mm tall and 1.6 mm deep.
安富利:
Cap Ceramic 4.7uF 16V X5R 10% SMD 1206 85°C Cardboard T/R
额定电压DC 16 V
电容 4.7 µF
容差 ±10 %
产品系列 Low profile
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 16 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.85 mm
封装公制 3216
封装 1206
厚度 0.85 mm
材质 X5R/-55℃~+85℃
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL31A475KOCLNNC Samsung 三星 | 当前型号 | 当前型号 |
CL31B475KOHNNNF 三星 | 完全替代 | CL31A475KOCLNNC和CL31B475KOHNNNF的区别 |
CL31A475KOHNNNE 三星 | 功能相似 | CL31A475KOCLNNC和CL31A475KOHNNNE的区别 |
CL31A475KPHNNNE 三星 | 功能相似 | CL31A475KOCLNNC和CL31A475KPHNNNE的区别 |
