MLCC-多层陶瓷电容器
MLCC-多层陶瓷器
立创商城:
10uF ±20% 6.3V
得捷:
CAP CER 10UF 6.3V X5R 0603
艾睿:

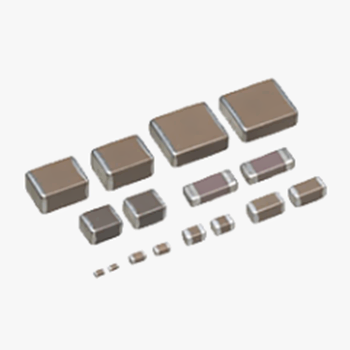

This CL10A106MQ5LRNC multilayer ceramic capacitor from Samsung Electro-Mechanics has so many uses that it even has a standard classification system for all its uses! It can withstand a voltage of 6.3 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its capacitance value is 10uF. This product is 1.6 mm long, 0.5 mm tall and 0.8 mm deep. It has a tolerance of 20%.
Verical:
Cap Ceramic 10uF 6.3V X5R 20% Pad SMD 0603 85C T/R
额定电压DC 6.3 V
电容 10 µF
容差 ±20 %
产品系列 Low profile
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 6.3 V
安装方式 Surface Mount
封装公制 1608
封装 0603

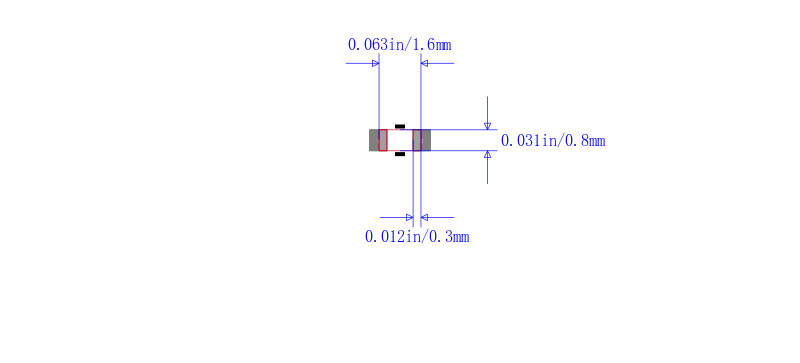

长度 1.6 mm
宽度 0.8 mm
高度 0.5 mm
封装公制 1608
封装 0603
厚度 0.5 mm
材质 X5R/-55℃~+85℃
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL10A106MQ5LRNC Samsung 三星 | 当前型号 | 当前型号 |
CL10A106MQ8NNND 三星 | 完全替代 | CL10A106MQ5LRNC和CL10A106MQ8NNND的区别 |
CL10A106MQ8NNNC 三星 | 功能相似 | CL10A106MQ5LRNC和CL10A106MQ8NNNC的区别 |
JMK107BJ106MA-T 太诱 | 功能相似 | CL10A106MQ5LRNC和JMK107BJ106MA-T的区别 |
