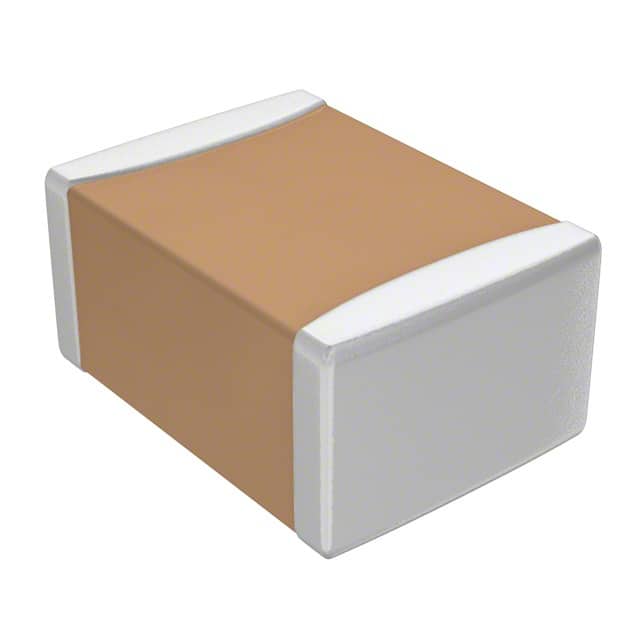

1206 680pF ±5% 630V C0G
±5% 630V 陶瓷器 C0G,NP0 1206(3216 公制)
得捷:
CAP CER 680PF 630V C0G/NP0 1206
艾睿:
This CL31C681JHHNNNE multilayer ceramic capacitor from Samsung Electro-Mechanics can be used in multiple applications and for various purposes. It can withstand a voltage of 630 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has a tolerance of 5%. Its capacitance value is 680pF. This product is 3.2 mm long, 1.6 mm tall and 1.6 mm deep.
安富利:
Cap Ceramic 680pF 630V C0G 5% SMD 1206 125°C Embossed T/R
额定电压DC 630 V
电容 680 pF
容差 ±5 %
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 630 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.6 mm
封装公制 3216
封装 1206
厚度 1.6 mm
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL31C681JHHNNNE Samsung 三星 | 当前型号 | 当前型号 |
CL31C681JHHNNNF 三星 | 完全替代 | CL31C681JHHNNNE和CL31C681JHHNNNF的区别 |
CL31C681JGHNNNE 三星 | 功能相似 | CL31C681JHHNNNE和CL31C681JGHNNNE的区别 |
ECJ-3YC2D681J 松下 | 功能相似 | CL31C681JHHNNNE和ECJ-3YC2D681J的区别 |
