1210 10uF -20%~80% 25V Y5V
-20%,+80% 25V 陶瓷器 Y5V(F) 1210(3225 公制)
得捷:
CAP CER 10UF 25V Y5V 1210
艾睿:

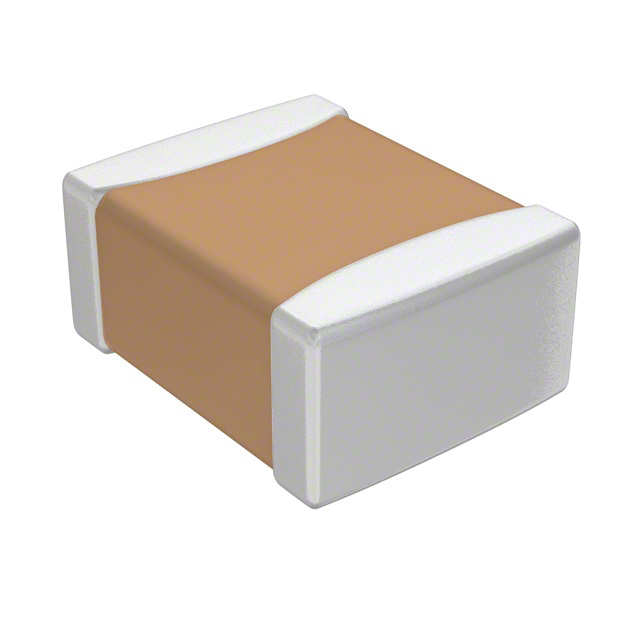

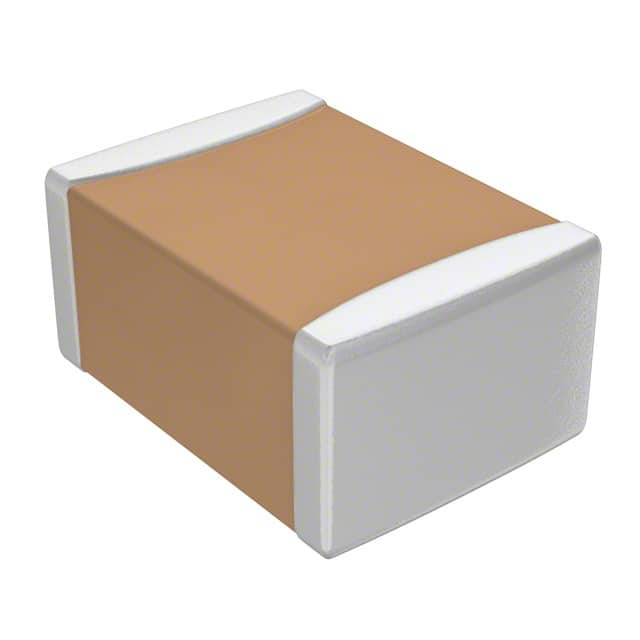

This CL32F106ZASLNNE multilayer ceramic capacitor from Samsung Electro-Mechanics has so many uses that it even has a standard classification system for all its uses! It can withstand a voltage of 25 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 3.2 mm long, 1.35 mm tall and 2.5 mm deep. Its capacitance value is 10uF.
富昌:
CL31 Series 1206 10 uF 25 V -20% to 80% Y5V Multilayer Ceramic Chip Capacitor
额定电压DC 25 V
电容 10 µF
容差 -20%~80%
产品系列 Low profile
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 25 V
安装方式 Surface Mount
封装公制 3225
封装 1210
长度 3.2 mm
宽度 2.5 mm
高度 1.35 mm
封装公制 3225
封装 1210
材质 Y5V/-30℃~+85℃
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL32F106ZASLNNE Samsung 三星 | 当前型号 | 当前型号 |
CL32F106ZOHNNNE 三星 | 功能相似 | CL32F106ZASLNNE和CL32F106ZOHNNNE的区别 |
CL32F106ZAHNNNE 三星 | 功能相似 | CL32F106ZASLNNE和CL32F106ZAHNNNE的区别 |
C3225Y5V1C106Z/1.60 东电化 | 功能相似 | CL32F106ZASLNNE和C3225Y5V1C106Z/1.60的区别 |
