4.7 nf 5 % 容差 50 V 1210 多层陶瓷电容
±5% 50V 陶瓷器 C0G,NP0 1210(3225 公制)
得捷:
CAP CER 4700PF 50V C0G/NP0 1210
艾睿:

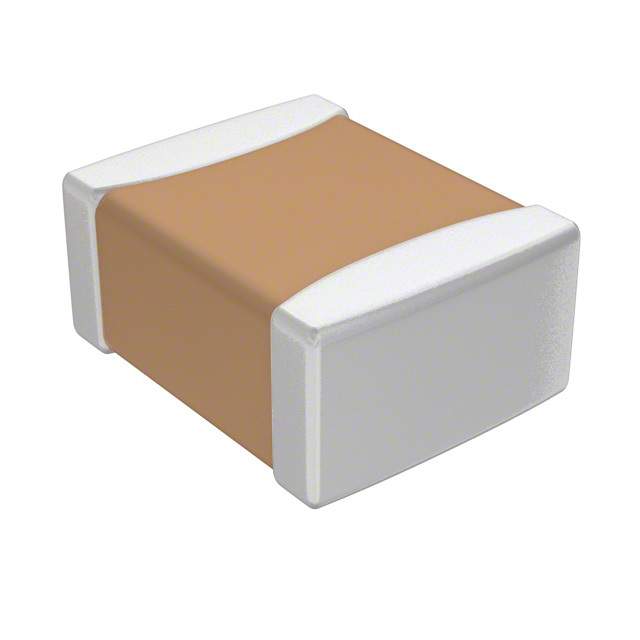

This CL32C472JBFNNNE multilayer ceramic capacitor from Samsung Electro-Mechanics uses different ceramic dielectric materials to achieve a variety of capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its capacitance value is 0.0047uF. This product is 3.2 mm long, 1.25 mm tall and 2.5 mm deep. It has a tolerance of 5%.
安富利:
Cap Ceramic 0.0047uF 50V C0G 5% SMD 1210 125°C Embossed T/R
Verical:
Cap Ceramic 0.0047uF 50V C0G 5% Pad SMD 1210 125C T/R
儒卓力:
**KC 4,7NF 1210 5% 50V NP0 **
额定电压DC 50.0 V
绝缘电阻 10 GΩ
电容 0.0047 µF
容差 ±5 %
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 3225
封装 1210
长度 3.2 mm
宽度 2.5 mm
高度 1.25 mm
封装公制 3225
封装 1210
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
