C091 31G014 200 2

Conn Circular F 14POS Solder ST Panel Mount 14 Terminal 1Port

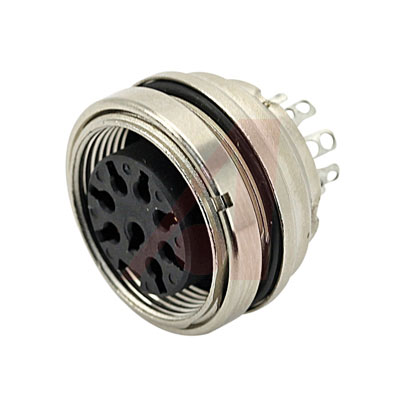

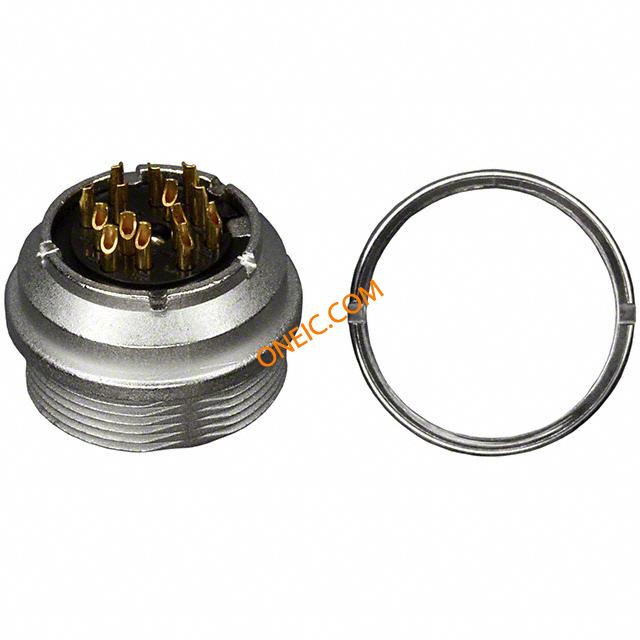

Female Receptacle with Solder Termination, Circular Connector

All metal for EMI applications. Standard threaded coupling. Die-cast brass shells with nickel-plating for 6 mm cables, 24-20 AWG wires.

.

* IP Rating:** IP67 water resistant. ** Current Rating:** 60-250 V, 3-5 A. Shielded. Solder area is tin-plated on receptacles. ** Series C091D Right-Angle Series Specifications.** Rated IP67 in mated condition. ** Current Rating:** 5 A; 12 and 14 contact solder termination — 3 A. 20-26 AWG wires. ** Materials. Dielectric Material:** Thermoplastic; Housing — Zinc alloy, nickel-plated. Locking Clip — Brass; Seal — Neoprene. Also available for 8 mm in 7 to 14 contacts and in gold-plating contacts in 3 DIN to 8 DIN contacts. Metal threaded coupling ACC to IEC 130-9. ** Cable Connector Length:** 2.3".

The connector have a rated voltage of 150 V.
