CL05F105ZQ5NNNC

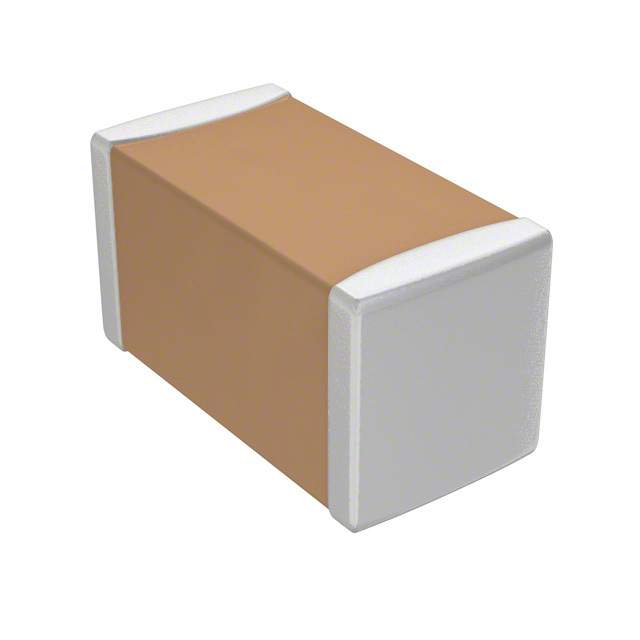

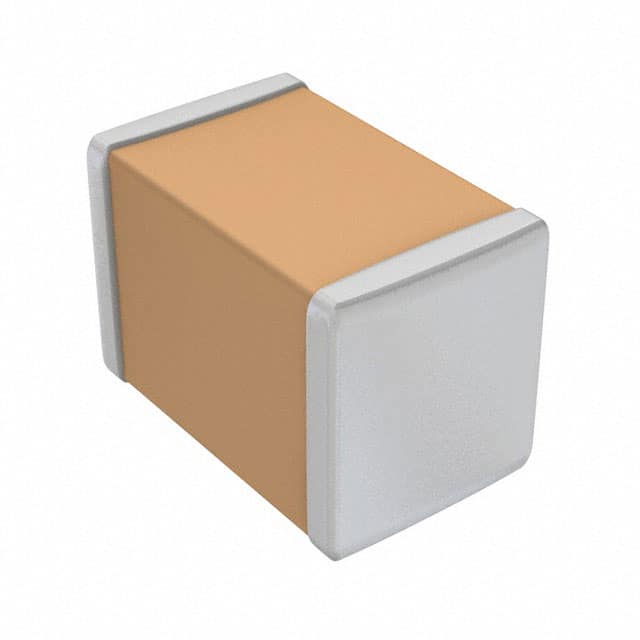

CL05F105ZQ5NNNC图片1
CL05F105ZQ5NNNC图片2
CL05F105ZQ5NNNC图片3
CL05F105ZQ5NNNC图片4
CL05F105ZQ5NNNC图片5
CL05F105ZQ5NNNC图片6
CL05F105ZQ5NNNC概述

MLCC-多层陶瓷电容器

MLCC-多层陶瓷器


得捷:
CAP CER 1UF 6.3V Y5V 0402


艾睿:
This CL05F105ZQ5NNNC multilayer ceramic capacitor MLCC from Samsung Electro-Mechanics consists of alternating layers of ceramic, which acts as the dielectric, and a metal layer, which acts as the electrodes. It can withstand a voltage of 6.3 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 1 mm long, 0.5 mm tall and 0.5 mm deep. Its capacitance value is 1uF.


Verical:
Cap Ceramic 1uF 6.3V Y5V -20% to 80% Pad SMD 0402 85C T/R


CL05F105ZQ5NNNC中文资料参数规格
技术参数

额定电压DC 6.30 V

电容 1000000 PF

容差 +80/-20%

电介质特性 Y5V

工作温度Max 85 ℃

工作温度Min -30 ℃

额定电压 6.3 V

封装参数

安装方式 Surface Mount

封装公制 1005

封装 0402

外形尺寸

长度 1 mm

宽度 0.5 mm

高度 0.5 mm

封装公制 1005

封装 0402

厚度 0.5 mm

物理参数

材质 Y5V/-30℃~+85℃

工作温度 -30℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 10000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

CL05F105ZQ5NNNC引脚图与封装图
CL05F105ZQ5NNNC引脚图

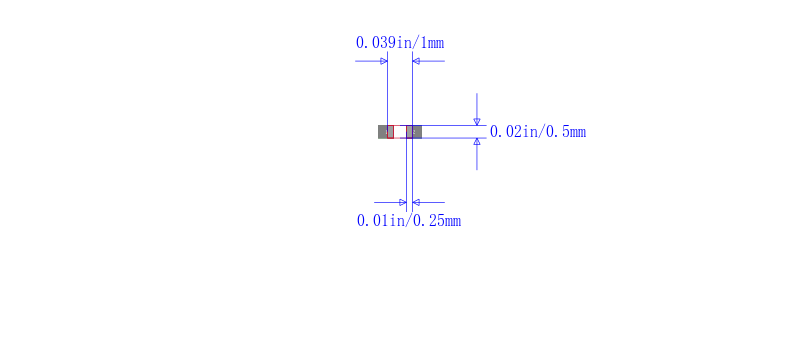

CL05F105ZQ5NNNC封装图
CL05F105ZQ5NNNC封装焊盘图
在线购买CL05F105ZQ5NNNC
型号: CL05F105ZQ5NNNC
制造商: Samsung 三星
描述:MLCC-多层陶瓷电容器
替代型号CL05F105ZQ5NNNC
型号/品牌 代替类型 替代型号对比

CL05F105ZQ5NNNC

Samsung 三星

当前型号

当前型号

CC0402ZRY5V5BB105

国巨

功能相似

CL05F105ZQ5NNNC和CC0402ZRY5V5BB105的区别

C1005Y5V0J105Z

东电化

功能相似

CL05F105ZQ5NNNC和C1005Y5V0J105Z的区别

GRM155F50J105ZE01D

村田

功能相似

CL05F105ZQ5NNNC和GRM155F50J105ZE01D的区别
