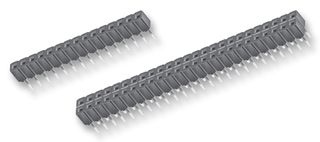

CES-113-01-T-D

板至板连接, 2.54 mm, 26 触点, 插座, CES Series, 通孔安装, 2 排

26 位置 插座 0.100"（2.54mm） 通孔 锡

欧时:
.100" Closed Entry Low Profile Socket S

得捷:
CONN RCPT 26POS 0.1 TIN PCB

e络盟:
板至板连接, 2.54 mm, 26 触点, 插座, CES Series, 通孔安装, 2 排

艾睿:

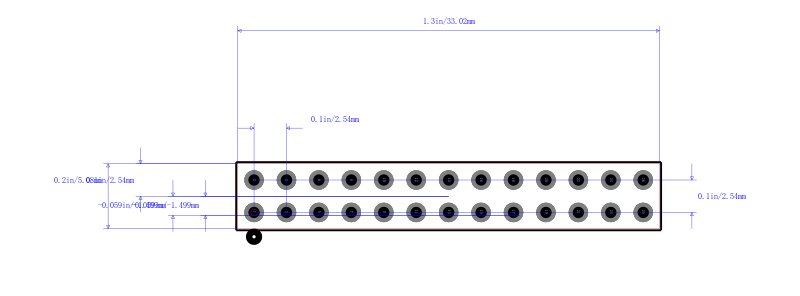

This socket strip CES-113-01-T-D header connector from Samtec is used for jumper posts to support physical configuration options on printed circuit boards. This SKT connector&s;s 26 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a socket type gender. This is a 2-row connector. It has a straight body orientation. It has a maximum voltage rating of 400 VAC. Its pitch is 2.54 mm. This device has a maximum current rating of 5.5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method. This product is 33.02 mm long, 5.08 mm tall and 5.59 mm deep. CES-113-01-T-D is housed in black polyester.

安富利:
Conn Socket Strip SKT 26 POS 2.54mm Solder ST Thru-Hole Tube

Verical:
Conn Socket Strip SKT 26 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
# SAMTEC  CES-113-01-T-D  Board-To-Board Connector, 2.54 mm, 26 Contacts, Receptacle, CES Series, Through Hole, 2 Rows
