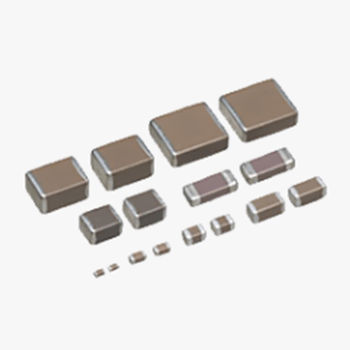

MLCC-多层陶瓷电容器
MLCC-多层陶瓷器
立创商城:
15nF -20%~+80% 50V
得捷:
CAP CER 0.015UF 50V Y5V 0402
艾睿:

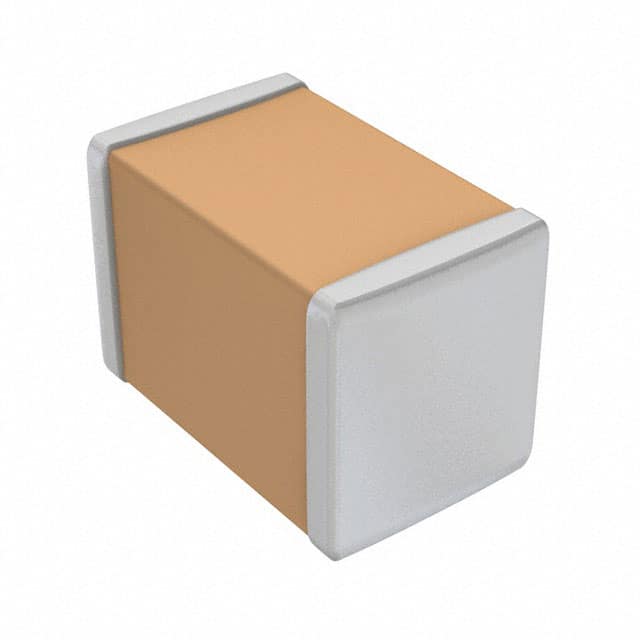

This CL05F153ZB5NNNC multilayer ceramic capacitor from Samsung Electro-Mechanics offers high stability and low losses for resonant circuit applications. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its capacitance value is 0.015uF. This product is 1 mm long, 0.5 mm tall and 0.5 mm deep.
Verical:
Cap Ceramic 0.015uF 50V Y5V -20% to 80% Pad SMD 0402 85C T/R
额定电压DC 50.0 V
电容 0.015 µF
容差 +80/-20%
电介质特性 Y5V
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.5 mm
封装公制 1005
封装 0402
厚度 0.5 mm
材质 Y5V/-30℃~+85℃
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL05F153ZB5NNNC Samsung 三星 | 当前型号 | 当前型号 |
ECJ-0EF1E153Z 松下 | 功能相似 | CL05F153ZB5NNNC和ECJ-0EF1E153Z的区别 |
CL05F153ZA5NNNC 三星 | 功能相似 | CL05F153ZB5NNNC和CL05F153ZA5NNNC的区别 |
