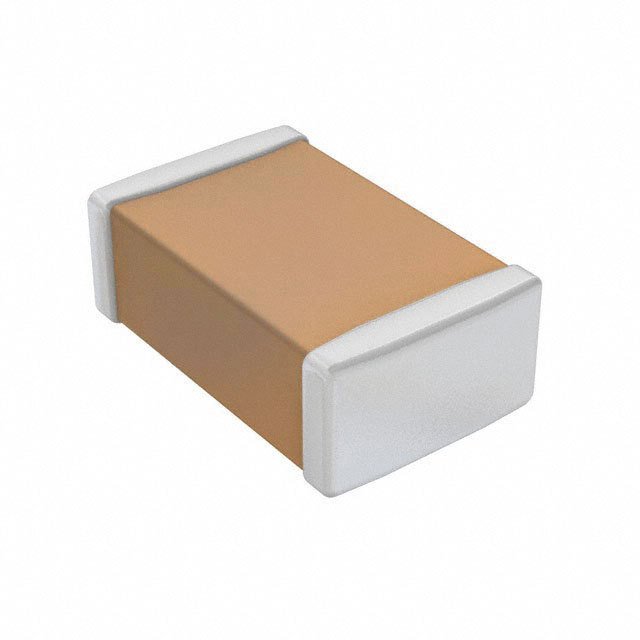

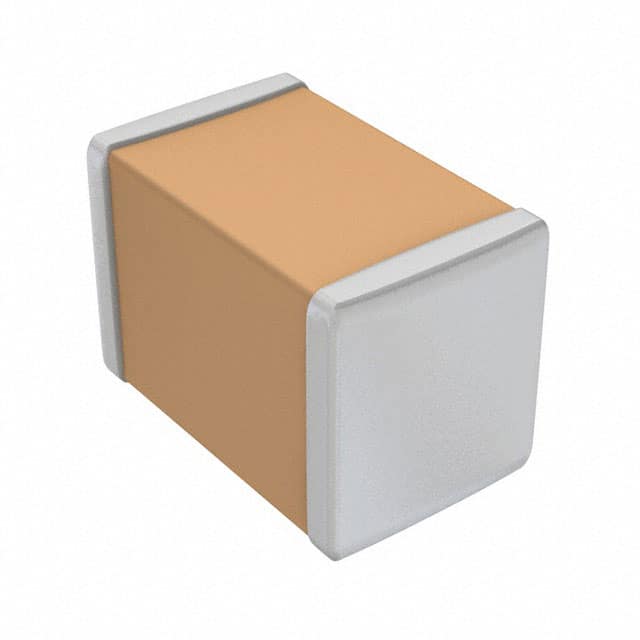

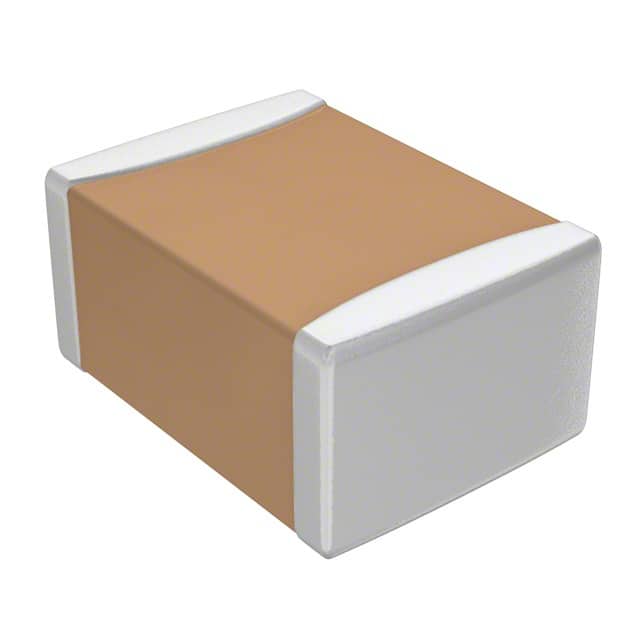

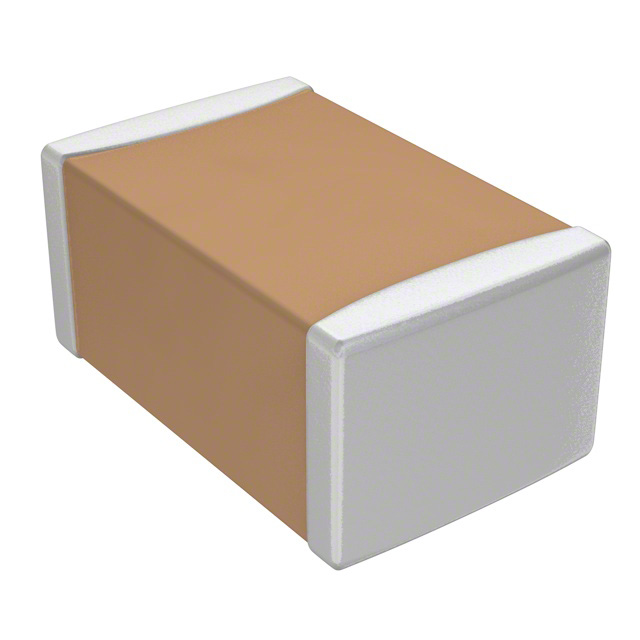

CL21系列 0805 0.01 uF 25 V 10 % X7R SMD 多层陶瓷电容
贴片 0805 X7R 103K10nF 25V ±10%
得捷:
CAP CER 10000PF 25V X7R 0805
立创商城:
10nF ±10% 25V
艾睿:
Do you need multiple capacitors for different uses in your electronics project? Look no further, this CL21B103KAANNNC multilayer ceramic capacitor from Samsung Electro-Mechanics has a multitude of uses for various applications! It can withstand a voltage of 25 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product is 2 mm long, 0.65 mm tall and 1.25 mm deep. Its capacitance value is 0.01uF. It has a tolerance of 10%.
Verical:
Cap Ceramic 0.01uF 25V X7R 10% Pad SMD 0805 125C T/R
额定电压DC 25.0 V
绝缘电阻 10 GΩ
电容 10000 pF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±10 %
额定电压 25 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.65 mm
封装公制 2012
封装 0805
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL21B103KAANNNC Samsung 三星 | 当前型号 | 当前型号 |
CL21B103KAANNND 三星 | 类似代替 | CL21B103KAANNNC和CL21B103KAANNND的区别 |
CL21B103KBANNNC 三星 | 功能相似 | CL21B103KAANNNC和CL21B103KBANNNC的区别 |
CL21B103JBANNNC 三星 | 功能相似 | CL21B103KAANNNC和CL21B103JBANNNC的区别 |
