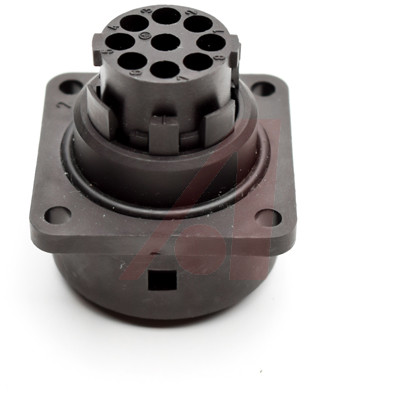

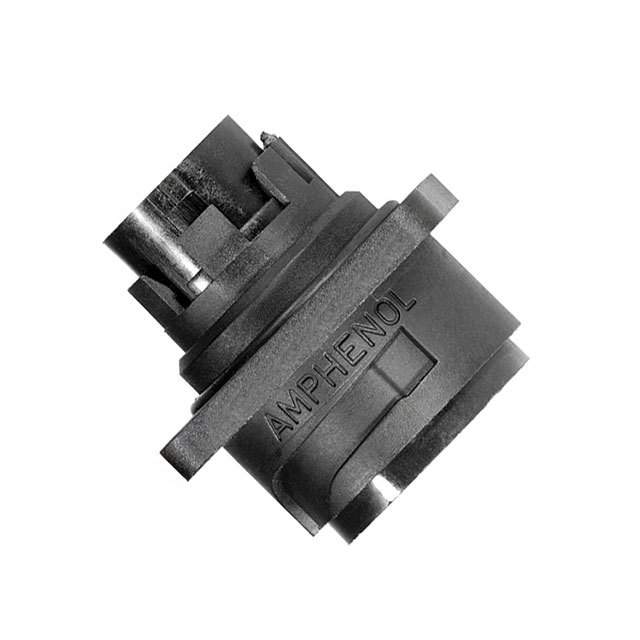

Conn Circular F 9POS Crimp ST Panel Mount 9 Terminal 1Port
In design and conception the Eco/Mate program meets the high requirements for applications in industrial technology. Easy operation, reduced dimensions and a more robust design are only a few of the features of the Series. The connector"s main area of application is in the fields of plant construction and machine building. The connector is used for measuring and controlling applications as well as for power supply technology.
**Features:**
* New Cable Screw Connection with Clamping Ring
* Strain Relief and Mounted Gasket All In One Component
* Ergonomically Shaped Handle for a Better Grip and Safer Handling
* Fastening for the Protective Caps on the Receptacle Housing
* One Cable Housing for All Cable Diameters 6 mm-12.5 mm
* UL Rated: 3 + PE — 400 V, 16 A; 6 + PE — 250 V, 13 A
* Protection Class IP 65/67 in Mated Condition in Accordance with DIN EN 60526
* Compatible with, but Supercedes the C016-1 Series
* PE is Additional Ground Contact, Mate Before Breaks
