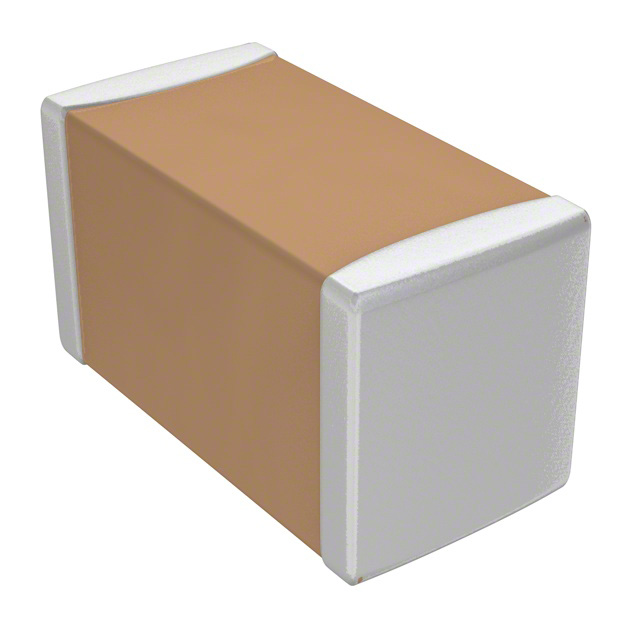

CL10B563KA8NNNC图片1

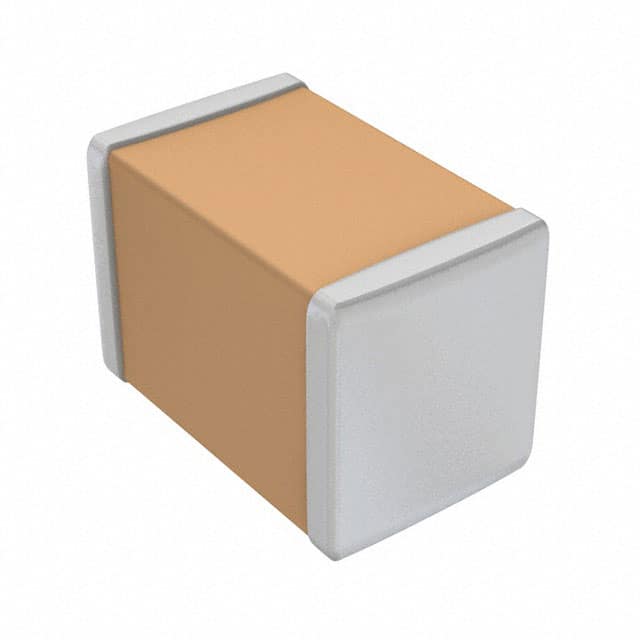

CL10B563KA8NNNC图片2
CL10B563KA8NNNC图片3
CL10B563KA8NNNC图片4
CL10B563KA8NNNC图片5
CL10B563KA8NNNC概述

0603 0.056 uF 25 V ±10% X7R 表面贴装 多层陶瓷电容

MLCC-多层陶瓷器


得捷:
CAP CER 0.056UF 25V X7R 0603


艾睿:
Since this CL10B563KA8NNNC multilayer ceramic capacitor from Samsung Electro-Mechanics has multiple layers of dielectric and electrodes, you&s;ll be getting high stability and low losses for resonant circuit applications. It can withstand a voltage of 25 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its capacitance value is 0.056uF. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep. It has a tolerance of 10%.


安富利:
Cap Ceramic 0.056uF 25V X7R 10% SMD 0603 125°C Paper T/R


富昌:
0603 0.056 uF 25 V ±10% X7R 表面贴装 多层陶瓷电容


Verical:
Cap Ceramic 0.056uF 25V X7R 10% Pad SMD 0603 125C T/R


CL10B563KA8NNNC中文资料参数规格
技术参数

额定电压DC 25.0 V

电容 0.056 µF

容差 ±10 %

电介质特性 X7R

工作温度Max 125 ℃

工作温度Min -55 ℃

精度 ±10 %

额定电压 25 V

封装参数

安装方式 Surface Mount

封装公制 1608

封装 0603

外形尺寸

长度 1.6 mm

宽度 0.8 mm

高度 0.8 mm

封装公制 1608

封装 0603

厚度 0.8 mm

物理参数

材质 X7R/-55℃~+125℃

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 4000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

CL10B563KA8NNNC引脚图与封装图

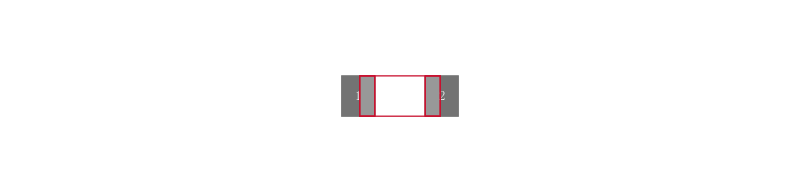

CL10B563KA8NNNC引脚图

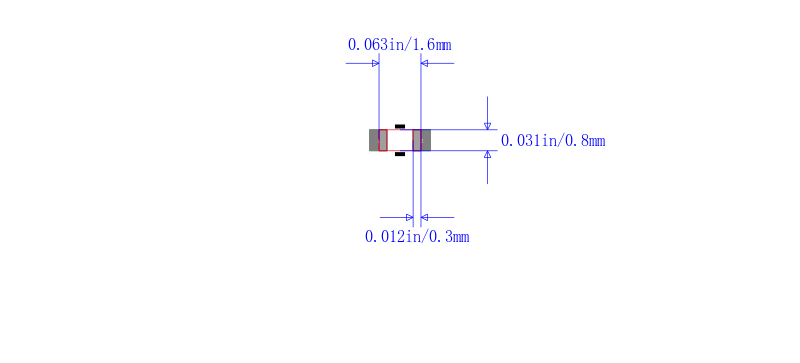

CL10B563KA8NNNC封装图
CL10B563KA8NNNC封装焊盘图
在线购买CL10B563KA8NNNC
型号: CL10B563KA8NNNC
制造商: Samsung 三星
描述:0603 0.056 uF 25 V ±10% X7R 表面贴装 多层陶瓷电容
替代型号CL10B563KA8NNNC
型号/品牌 代替类型 替代型号对比

CL10B563KA8NNNC

Samsung 三星

当前型号

当前型号

C0603C563K3RACTU

基美

功能相似

CL10B563KA8NNNC和C0603C563K3RACTU的区别

CL10B563KB8NNNL

三星

功能相似

CL10B563KA8NNNC和CL10B563KB8NNNL的区别

ECJ-1VB1C563K

松下

功能相似

CL10B563KA8NNNC和ECJ-1VB1C563K的区别
