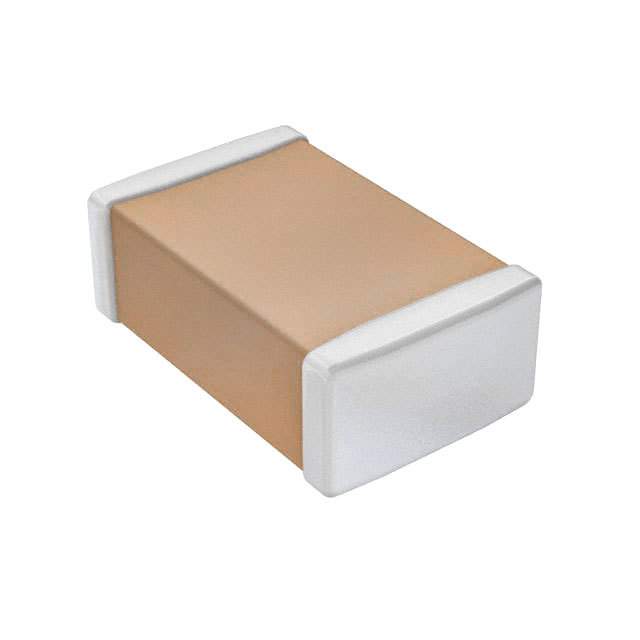

CL21 系列 0805 47 pF 50 V ±5 % C0G 表面贴装 多层陶瓷电容
MLCC-多层陶瓷器
得捷:
CAP CER 47PF 50V C0G/NP0 0805
立创商城:
47pF ±5% 50V
欧时:
Samsung Electro-Mechanics CL 系列 47pF 50V dc C0G电介质 表面安装器件 多层陶瓷电容器 CL21C470JB61PNC
艾睿:
This CL21C470JB61PNC multilayer ceramic capacitor from Samsung Electro-Mechanics is non-polarized so it may be connected either to positive or to negative voltage. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 5%. Its capacitance value is 47pF. This product is 2 mm long, 0.6 mm tall and 1.25 mm deep.
安富利:
Cap Ceramic 47pF 50V C0G 5% SMD 0805 125°C Cardboard T/R
富昌:
CL21 系列 0805 47 pF 50 V ±5 % C0G 表面贴装 多层陶瓷电容
儒卓力:
**KC 47pF 0805 5% 50V NP0 AECQ **
额定电压DC 50 V
电容 47 pF
容差 ±5 %
产品系列 Automotive
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount

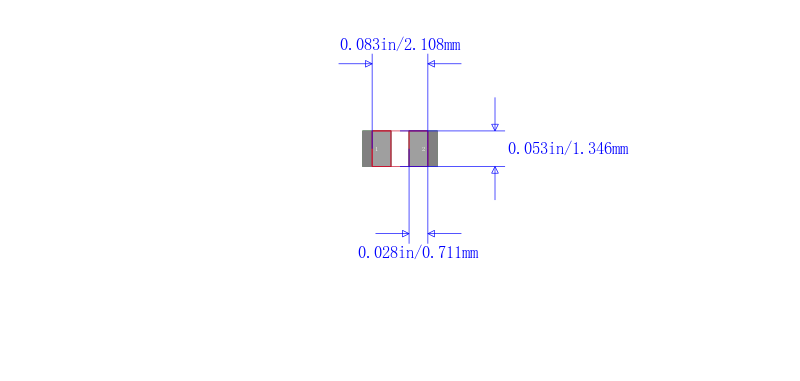

封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.6 mm
封装公制 2012
封装 0805
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
温度系数 ±300 ppm/℃
产品生命周期 Active

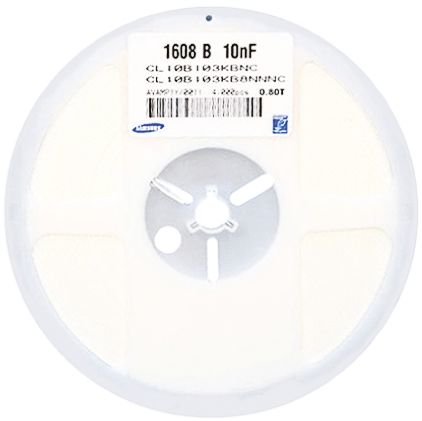

包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL21C470JB61PNC Samsung 三星 | 当前型号 | 当前型号 |
0805N470J500LT 台湾华科 | 类似代替 | CL21C470JB61PNC和0805N470J500LT的区别 |
CL21C470JBANNND 三星 | 功能相似 | CL21C470JB61PNC和CL21C470JBANNND的区别 |
