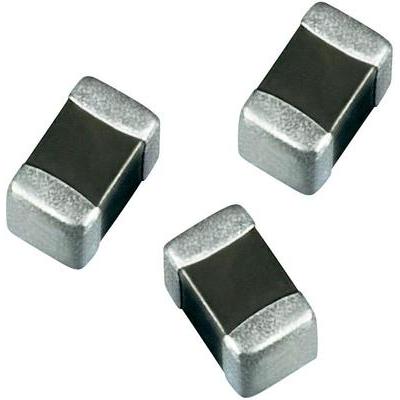

CL31 系列 1206 0.33 uF 50 V 10 % X7R SMD 多层陶瓷电容
MLCC-多层陶瓷器
得捷:
CAP CER 0.33UF 50V X7R 1206
立创商城:
330nF ±10% 50V
艾睿:
This CL31B334KBFNNNE multilayer ceramic capacitor from Samsung Electro-Mechanics uses different ceramic dielectric materials to achieve a variety of capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its capacitance value is 0.33uF. This product is 3.2 mm long, 1.25 mm tall and 1.6 mm deep. It has a tolerance of 10%.
安富利:
Cap Ceramic 0.33uF 50VDC X7R 10% SMD 1206 Embossed T/R
TME:
Capacitor: ceramic; 330nF; 50V; X7R; ±10%; SMD; 1206
Verical:
Cap Ceramic 0.33uF 50V X7R 10% Pad SMD 1206 125C T/R
儒卓力:
**KC 330nF 1206 10% 50V X7R **
额定电压DC 50.0 V
工作电压 50 V
绝缘电阻 10 GΩ
电容 0.33 µF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.25 mm
封装公制 3216
封装 1206
厚度 1.25 mm
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active

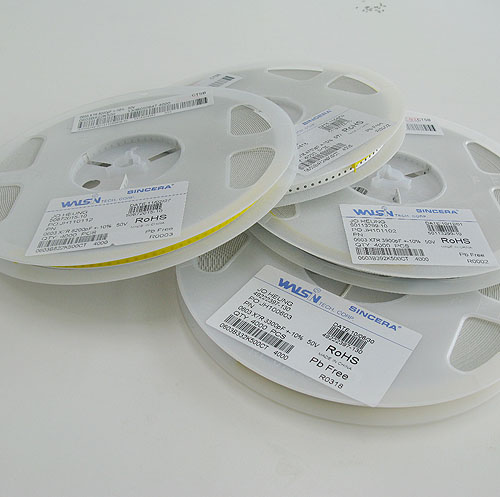

包装方式 Tape & Reel TR
最小包装 2000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL31B334KBFNNNE Samsung 三星 | 当前型号 | 当前型号 |
GRM319R71H334KA01D 村田 | 类似代替 | CL31B334KBFNNNE和GRM319R71H334KA01D的区别 |
CL31B334KBFNNNF 三星 | 类似代替 | CL31B334KBFNNNE和CL31B334KBFNNNF的区别 |
1206B334K500CT 台湾华科 | 类似代替 | CL31B334KBFNNNE和1206B334K500CT的区别 |
