0805 1nF ±2% 50V C0G
1000pF ±2% 50V Ceramic Capacitor C0G, NP0
得捷:
CAP CER 1000PF 50V C0G/NP0 0805
艾睿:

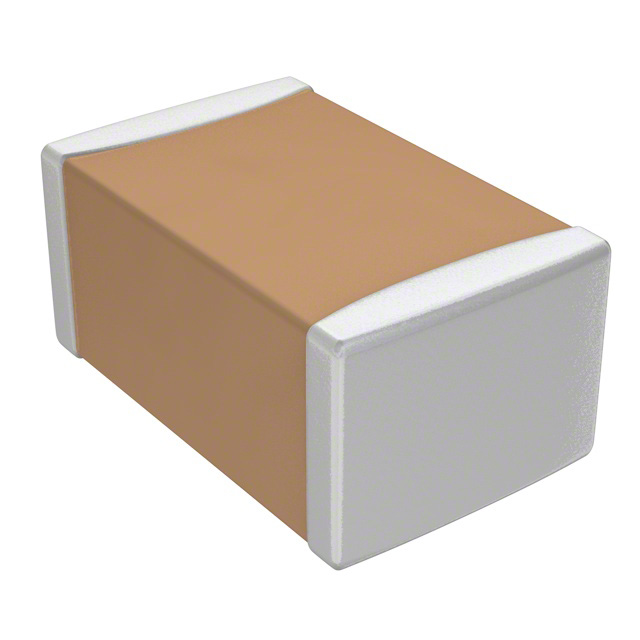

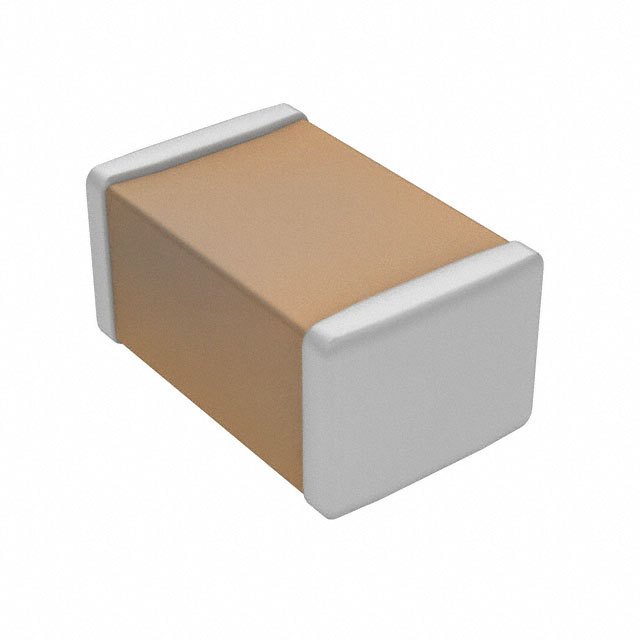

This CL21C102GBCNNNC multilayer ceramic capacitor from Samsung Electro-Mechanics is available with a variety of capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its capacitance value is 0.001uF. This product is 2 mm long, 0.85 mm tall and 1.25 mm deep. It has a tolerance of 2%.
安富利:
Cap Ceramic 0.001uF 50V C0G 2% SMD 0805 125°C Paper T/R
Verical:
Cap Ceramic 0.001uF 50V C0G 2% Pad SMD 0805 125C T/R
儒卓力:
**KC 1,0nF 0805 2% 50V NP0 **
额定电压DC 50.0 V
电容 0.001 µF
容差 ±2 %
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.85 mm
封装公制 2012
封装 0805
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL21C102GBCNNNC Samsung 三星 | 当前型号 | 当前型号 |
CL21C102JBCNNNC 三星 | 类似代替 | CL21C102GBCNNNC和CL21C102JBCNNNC的区别 |
C0805C102G5GACTU 基美 | 功能相似 | CL21C102GBCNNNC和C0805C102G5GACTU的区别 |
C0805C102G5GACTM 基美 | 功能相似 | CL21C102GBCNNNC和C0805C102G5GACTM的区别 |
