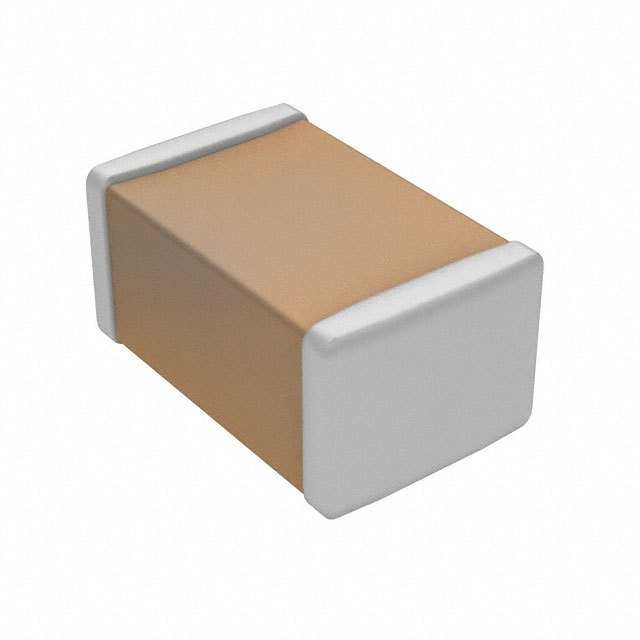

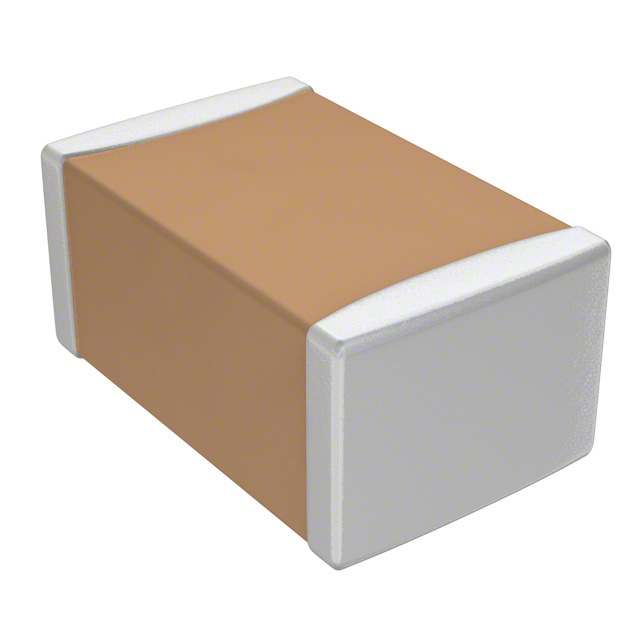

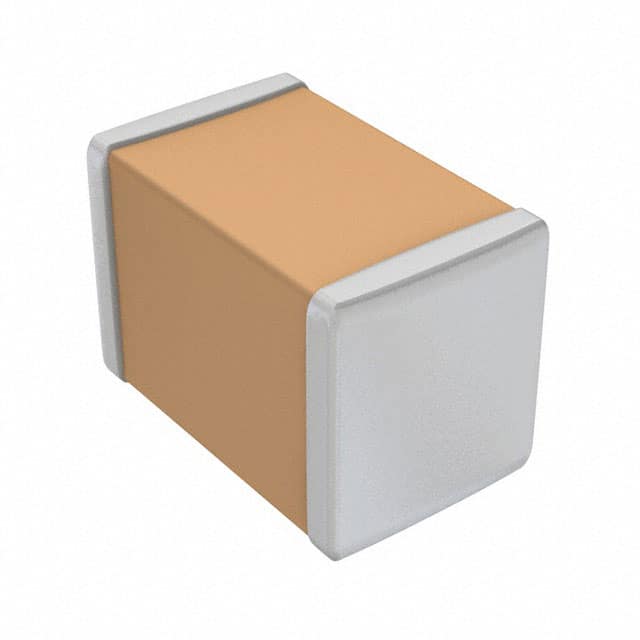

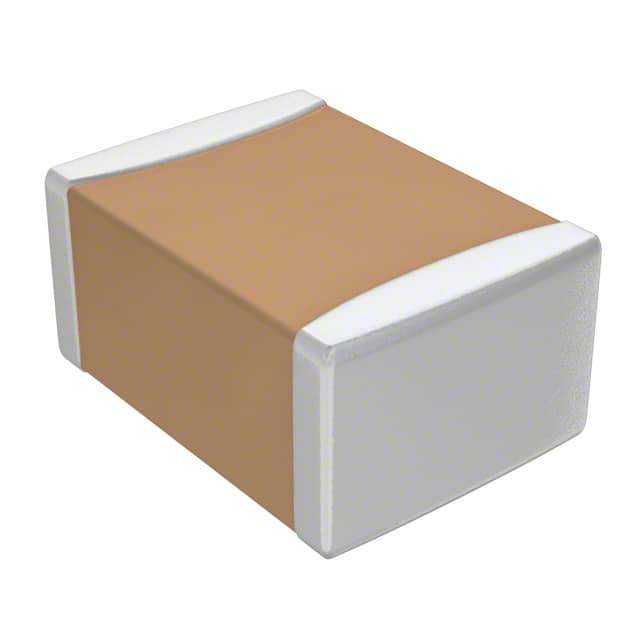

0805 220 pF 200 V ±5% 容差 C0G 表面贴装 多层陶瓷电容
MLCC-多层陶瓷器
得捷:
CAP CER 220PF 200V C0G/NP0 0805
艾睿:
Do you need a non-polarized capacitor? This CL21C221JDCNNNC multilayer ceramic capacitor from Samsung Electro-Mechanics can be connected either to positive or to negative voltage as you please! It can withstand a voltage of 200 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its capacitance value is 220pF. This product is 2 mm long, 0.85 mm tall and 1.25 mm deep. It has a tolerance of 5%.
Verical:
Cap Ceramic 220pF 200V C0G 5% Pad SMD 0805 125°C T/R
额定电压DC 200 V
绝缘电阻 10 GΩ
电容 220 pF
容差 ±5 %
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 200 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.85 mm
封装公制 2012
封装 0805
厚度 0.85 mm
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL21C221JDCNNNC Samsung 三星 | 当前型号 | 当前型号 |
NMC-H0805NPO221J200TRPLPF NIC | 类似代替 | CL21C221JDCNNNC和NMC-H0805NPO221J200TRPLPF的区别 |
ECJ-2FC2D221J 松下 | 类似代替 | CL21C221JDCNNNC和ECJ-2FC2D221J的区别 |
ECJ-2YC2D221J 松下 | 类似代替 | CL21C221JDCNNNC和ECJ-2YC2D221J的区别 |
