CW4S-33E11N4

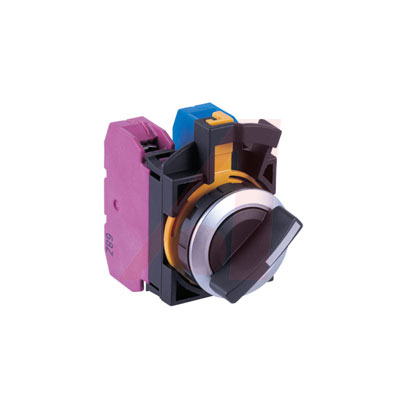

CW4S-33E11N4图片1
CW4S-33E11N4图片2
CW4S-33E11N4图片3
CW4S-33E11N4图片4
CW4S-33E11N4概述

Switch, knob; Rnd mtl bzl; 3POS; Mom; 1NO1NC; 6A/240VAC; 22mm flush mnt; UL

The CW series give a sleek, stylish image to your machine or control panel. Because of the slim profile, the surface is safer as there is less chance of unexpected operation or accident by hitting the switch. Depth behind the panel of the CW series is shorter than conventional switches, reducing the amount of space needed in the control panel.


Allied Electronics:
SWITCH; SELECTOR SWITCH 22MM 3 POS SPRING RETURN TWO WAY 1NO-1NC


Newark:
# IDEC  CW4S-33E11N4  Rotary Switch, 3 Position, Non Illuminated, 45 °, 10 A, 10 A


CW4S-33E11N4中文资料参数规格
技术参数

针脚数 3

额定电压 240 VAC

其他

No. of Switch Positions 3 Position

Illumination Non Illuminated

Product Range \-

Angle of Throw 45°

Contact Current AC Max 10A

Contact Current DC Max 10A

Contact Voltage AC Max 125V

Contact Voltage DC Max 24V

No. of Poles 2 Pole

SVHC To Be Advised

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买CW4S-33E11N4
型号: CW4S-33E11N4
制造商: IDEC
描述:Switch, knob; Rnd mtl bzl; 3POS; Mom; 1NO1NC; 6A/240VAC; 22mm flush mnt; UL
