CL31B332KGFNNNE

Samsung 1206 MLCC series reels### 1206 系列C0G NP0 是“温度补偿”的最常见配方，为 EIA I 类陶瓷材料 X7R 配方称为“温度稳定”陶瓷，属于 EIA II 类材料 Y5V 配方为有限温度范围内的一般用途材料。这些特征使得 Y5V 非常适合去耦应用。

1206 MLCC series reels

### 1206 系列

C0G NP0 是“温度补偿”的最常见配方，为 EIA I 类陶瓷材料

X7R 配方称为“温度稳定”陶瓷，属于 EIA II 类材料

Y5V 配方为有限温度范围内的一般用途材料。这些特征使得 Y5V 非常适合去耦应用。

得捷:
CAP CER 3300PF 500V X7R 1206

欧时:
Samsung Electro-Mechanics CL 系列 3.3nF 500V dc X7R电介质 表面安装器件 多层陶瓷电容器 CL31B332KGFNNNE

艾睿:

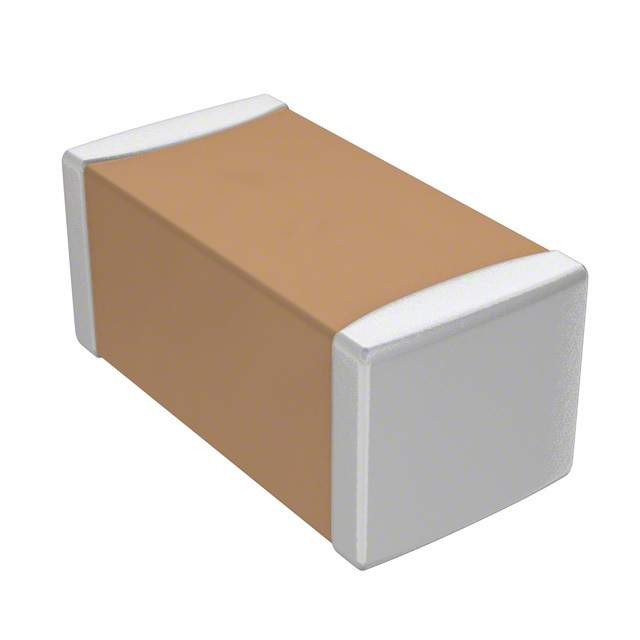

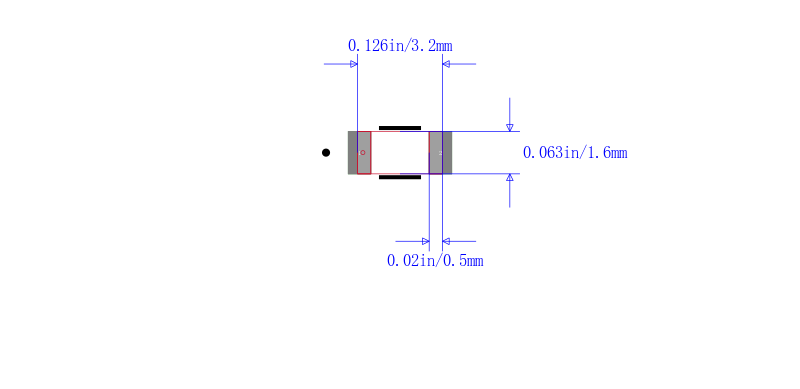

This CL31B332KGFNNNE multilayer ceramic capacitor MLCC from Samsung Electro-Mechanics consists of alternating layers of ceramic, which acts as the dielectric, and a metal layer, which acts as the electrodes. It can withstand a voltage of 500 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 3.2 mm long, 1.25 mm tall and 1.6 mm deep. Its capacitance value is 0.0033uF. It has a tolerance of 10%.

TME:
Capacitor: ceramic; 3.3nF; 500V; X7R; ±10%; SMD; 1206

Verical:
Cap Ceramic 0.0033uF 500V X7R 10% Pad SMD 1206 125C T/R

儒卓力:
**KC 3,3nF 1206 10% 500V X7R **
