CLT-120-02-L-D-BE概述
Conn Socket Strip SKT 40POS 2mm Solder ST SMD Tube
The CLT series from are Tiger Claw rugged and reliable dual wipe socket strips. These low profile socket strips mates with Samtec TMM, TMMH, MTMM, MMT, TW and TSH series of connectors.
- .
- 2mm pitch 2 to 50 contacts per row with surface mount and vertical orientation
- .
- High operating temperature range of -55°C to 125°C
- .
- 10µ" gold plated contacts, socket strip with bottom entry option
- .
- Black liquid crystal polymer insulator material
- .
- Contact material is phosphor bronze
- .
- Contact resistance is 10mohm
- .
- Tiger Claw contact system
- .
- Complies with UL E111594 standard
- .
- Mating cycles is 100
CLT-120-02-L-D-BE中文资料参数规格
技术参数
触点数 40
极性 Female
触点电镀 Gold
额定电流 4.1A/触头
排数 2
针脚数 40
拔插次数 100
额定电流Max 4.1A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
接触电阻Max 10 mΩ
封装参数
安装方式 Surface Mount
外形尺寸
高度 2.27 mm
物理参数
外壳颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 125℃
其他
产品生命周期 Active
包装方式 Tube
制造应用 -, Industrial
符合标准
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15

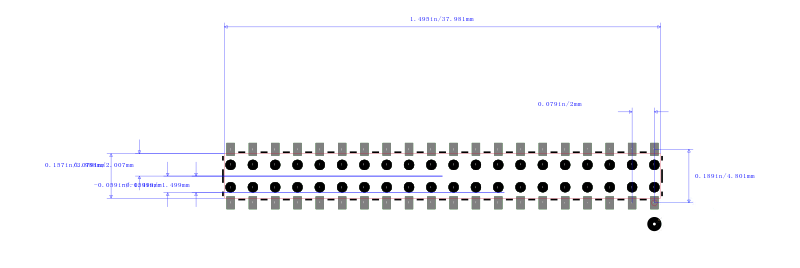

CLT-120-02-L-D-BE引脚图与封装图
