CLP-134-02-L-D

SAMTEC CLP-134-02-L-D Board-To-Board Connector, 1.27mm, 68Contacts, Receptacle, CLP Series, Surface Mount, 2Rows

68 位置 插座 0.050"（1.27mm） 表面贴装型 镀金

得捷:
CONN RCPT 68POS 0.05 GOLD SMD

艾睿:

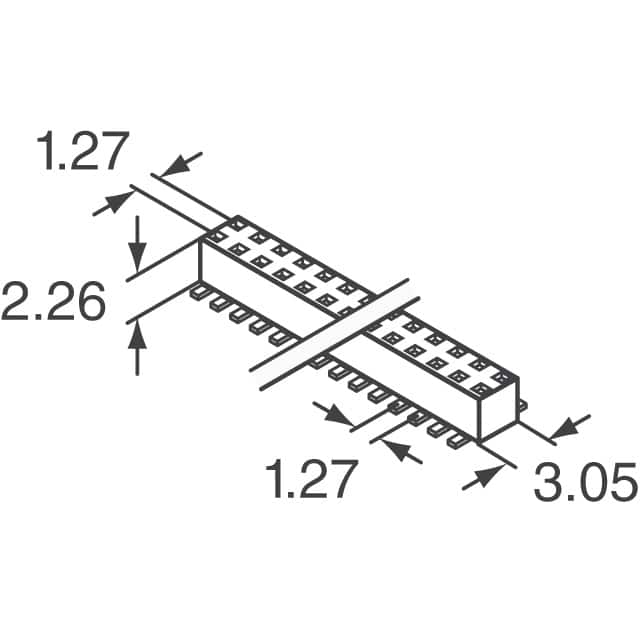

Protect your printed circuit boards from accidental damages with Samtec&s;s socket strip CLP-134-02-L-D header connector. This SKT connector&s;s 68 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. This is a 2-row connector. Its pitch is 1.27 mm. It has a socket type gender. It has a maximum voltage rating of 340 VDC|240VAC. This device has a maximum current rating of 3.3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 43.61 mm long, 2.29 mm tall and 4.32 mm deep. CLP-134-02-L-D is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.

Newark:
# SAMTEC  CLP-134-02-L-D  Board-To-Board Connector, 1.27 mm, 68 Contacts, Receptacle, CLP Series, Surface Mount, 2 Rows
