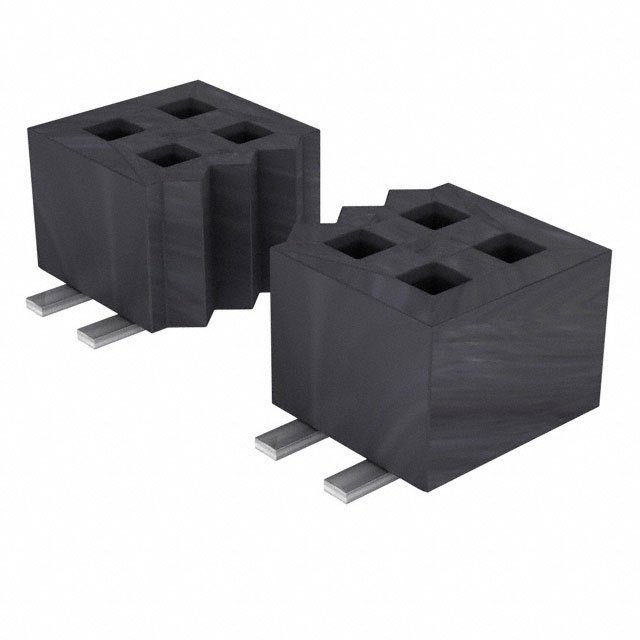

板对板与夹层连接器 .050" Tiger Claw Rugged Reliable Dual Wipe Socket Strip
38 位置 插座 0.050"(1.27mm) 表面贴装型 镀金
得捷:
CONN RCPT 38POS 0.05 GOLD SMD
贸泽:
板对板与夹层连接器 .050" Tiger Claw Rugged Reliable Dual Wipe Socket Strip
艾睿:
Thanks to Samtec&s;s socket strip CLP-119-02-L-D header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This SKT connector&s;s 38 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 340 VDC|240VAC. It has a straight body orientation. This is a 2-row connector. Its pitch is 1.27 mm. It has a socket type gender. This device has a maximum current rating of 3.3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. CLP-119-02-L-D is housed in black liquid crystal polymer. This product is 24.56 mm long, 2.29 mm tall and 4.32 mm deep. This connector has an operating temperature of -55 to 125 °C.
Newark:
# SAMTEC CLP-119-02-L-D Board-To-Board Connector, 1.27 mm, 38 Contacts, Receptacle, CLP Series, Surface Mount, 2 Rows
触点数 38
极性 Female
触点电镀 Gold
排数 2
针脚数 38
拔插次数 100
额定电流Max 3.4A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
接触电阻Max 10 mΩ
安装方式 Surface Mount

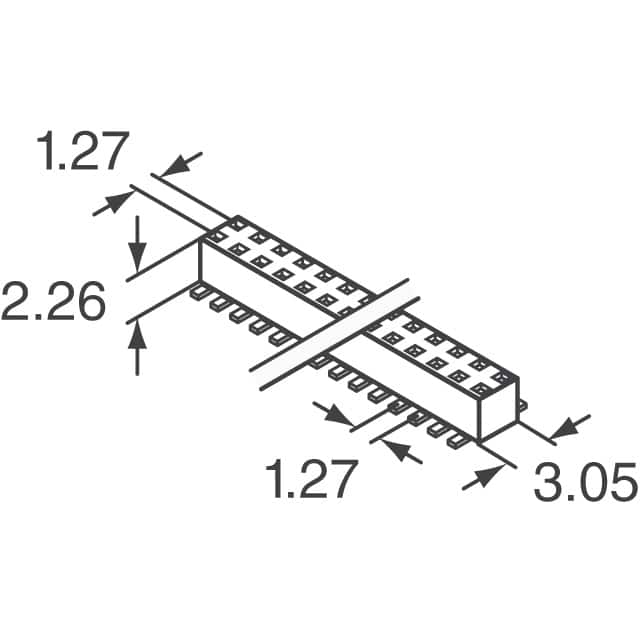

引脚间距 1.27 mm
长度 24.6 mm
宽度 3.05 mm
高度 2.29 mm
引脚间距 1.27 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
外壳材质 Plastic
产品生命周期 Active
包装方式 Tube
制造应用 Industrial, -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
